L7809ABV-DG

L7809ABV-DG Overview

Product belongs to the L7809 series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220AB Up to 35V voltage input Number-of-Outputs: 1 Output voltage: 9V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 9 V Maximum Input Voltage: 40 V Output current: 1.5 A The product's 40 V is 5.1 V. Load regulation is 30 mV. This product's 12 mV is 0.01 %/V.

L7809ABV-DG Image

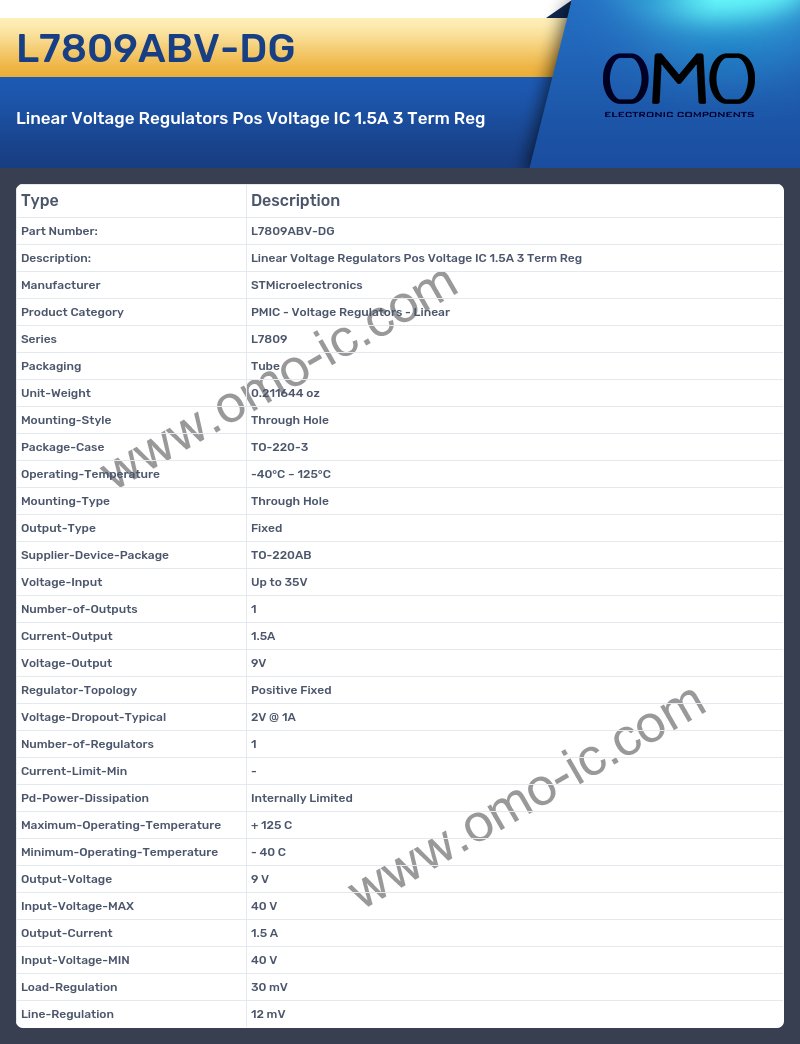

L7809ABV-DG Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L7809
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220AB
• Voltage-Input Up to 35V
• Number-of-Outputs 1
• Current-Output 1.5A
• Voltage-Output 9V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 2V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 9 V
• Input-Voltage-MAX 40 V
• Output-Current 1.5 A
• Input-Voltage-MIN 40 V
• Load-Regulation 30 mV
• Line-Regulation 12 mV
