LD2985BM50R

LD2985BM50R Overview

Product belongs to the LD2985BM series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 16 V Output current: 150 mA The product's 2.5 V is 5.1 V. The voltage regulation accuracy of this product is 2.5 %. Input bias current of 80 uA This product has a 100 uA of 7 mA, making it ideal for low-power applications. The 0.001 V at 0 mA. The maximum 575 mV is 360 mV. This product's 0.014 % / V is 0.01 %/V. The product's 45 dB is -20 dB.

LD2985BM50R Image

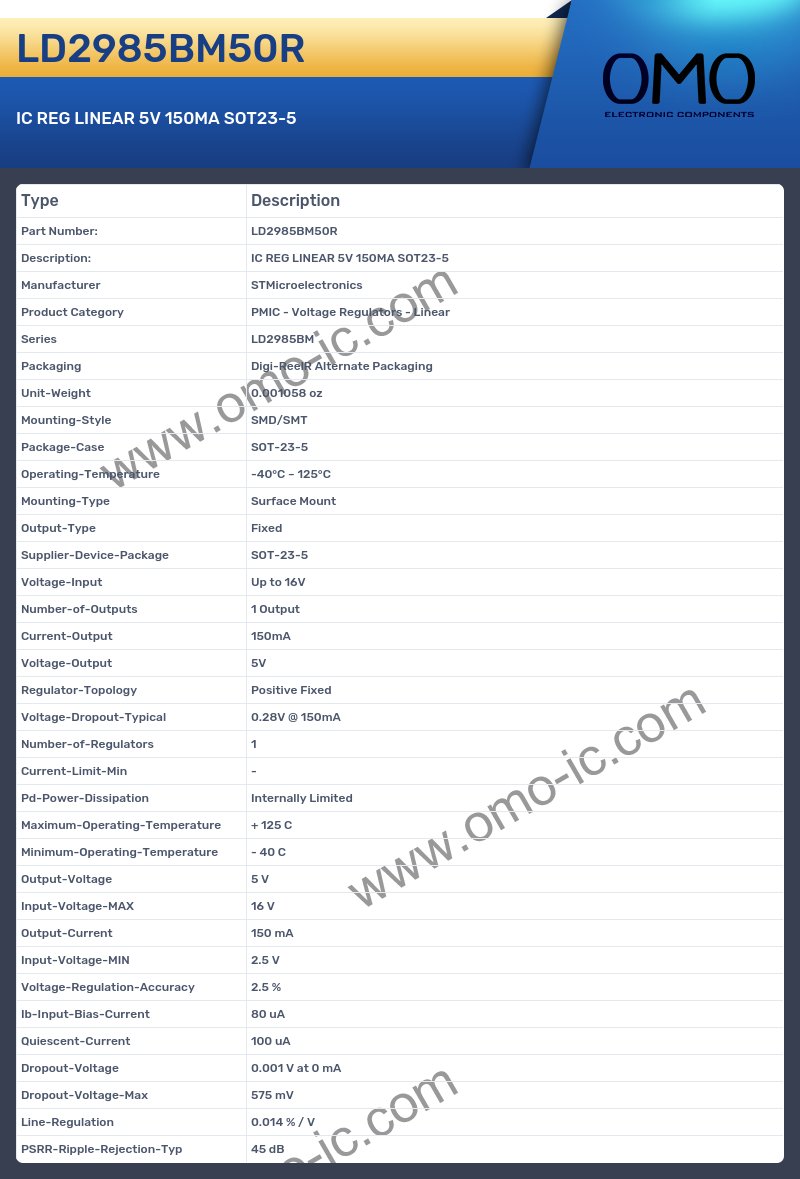

LD2985BM50R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD2985BM
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.28V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 16 V
• Output-Current 150 mA
• Input-Voltage-MIN 2.5 V
• Voltage-Regulation-Accuracy 2.5 %
• Ib-Input-Bias-Current 80 uA
• Quiescent-Current 100 uA
• Dropout-Voltage 0.001 V at 0 mA
• Dropout-Voltage-Max 575 mV
• Line-Regulation 0.014 % / V
• PSRR-Ripple-Rejection-Typ 45 dB
