LD49300PT12R

LD49300PT12R Overview

Product belongs to the LD49150XX12 series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PPAK-5 Operational temperature range: -25°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: PPAK Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 25 C Output voltage: 1.2 V Maximum Input Voltage: 5.5 V Output current: 3 A The product's + 1.4 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 1.5 %. Reference voltage is 0.812 V . The 400 mV. The maximum 200 mV at 1.5 A is 360 mV. This product's 0.1 % / V is 0.01 %/V. This product has an - of 2.7 V to 5.5 V.

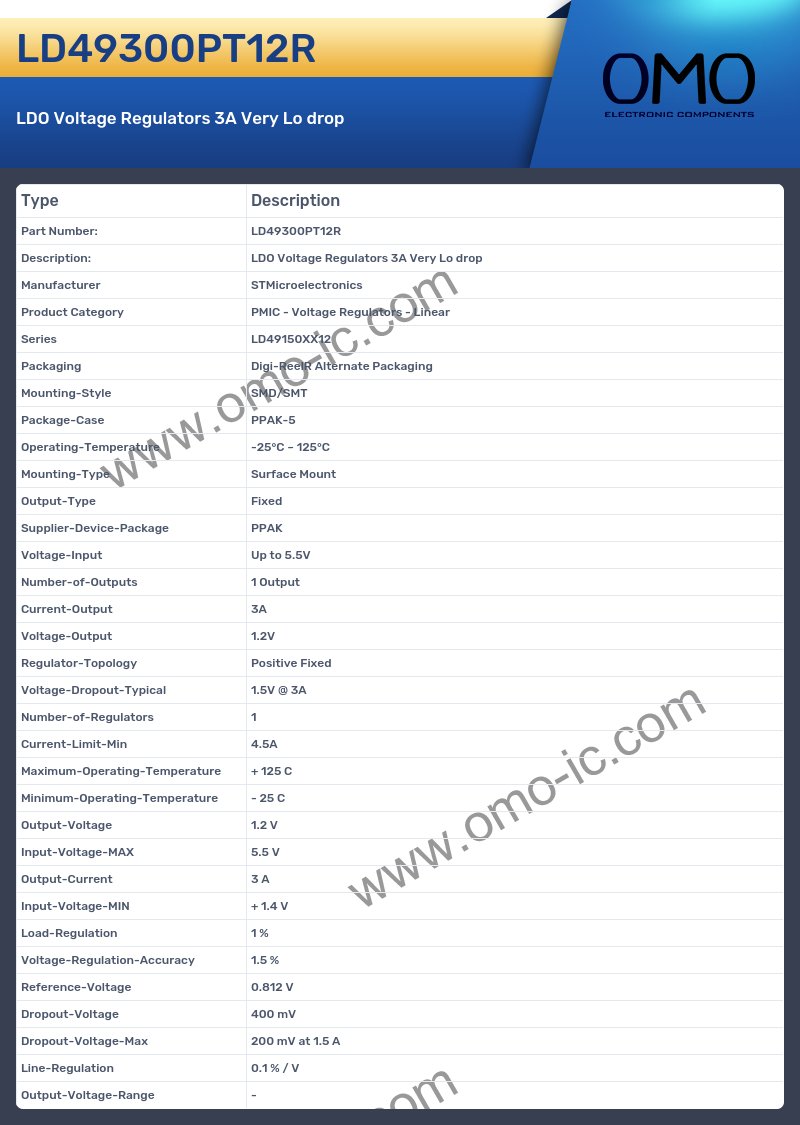

LD49300PT12R Image

LD49300PT12R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD49150XX12
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PPAK-5
• Operating-Temperature -25°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package PPAK
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 3A
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.5V @ 3A
• Number-of-Regulators 1
• Current-Limit-Min 4.5A
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 25 C
• Output-Voltage 1.2 V
• Input-Voltage-MAX 5.5 V
• Output-Current 3 A
• Input-Voltage-MIN + 1.4 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 1.5 %
• Reference-Voltage 0.812 V
• Dropout-Voltage 400 mV
• Dropout-Voltage-Max 200 mV at 1.5 A
• Line-Regulation 0.1 % / V
• Output-Voltage-Range -
