| Mfr. #: | LED2001PHR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | LED Lighting Drivers 4A 850kHz Step-Down 3.0V to 18V 100mV |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | LED2001PHR Datasheet |
Product belongs to the LED2001 series. Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002490 oz SMD/SMT Mounting-Style HSOP-8 This product's 850kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Lighting, Signage applications for maximum usability Supplier device package: 8-HSOP Number-of-Outputs: 1 Current-Output-Channel is 4A This product has Yes. Topology: Step-Down (Buck) feedback The maximum voltage supply is 18V. The minimum 3V required for voltage supply. Output voltage: - Dimming control is done through PWM communication. Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C The operating frequency is 850 kHz. Input Voltage Range: 3 V to 18 V Output current: 4 A Maximum supply current: 2.5 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

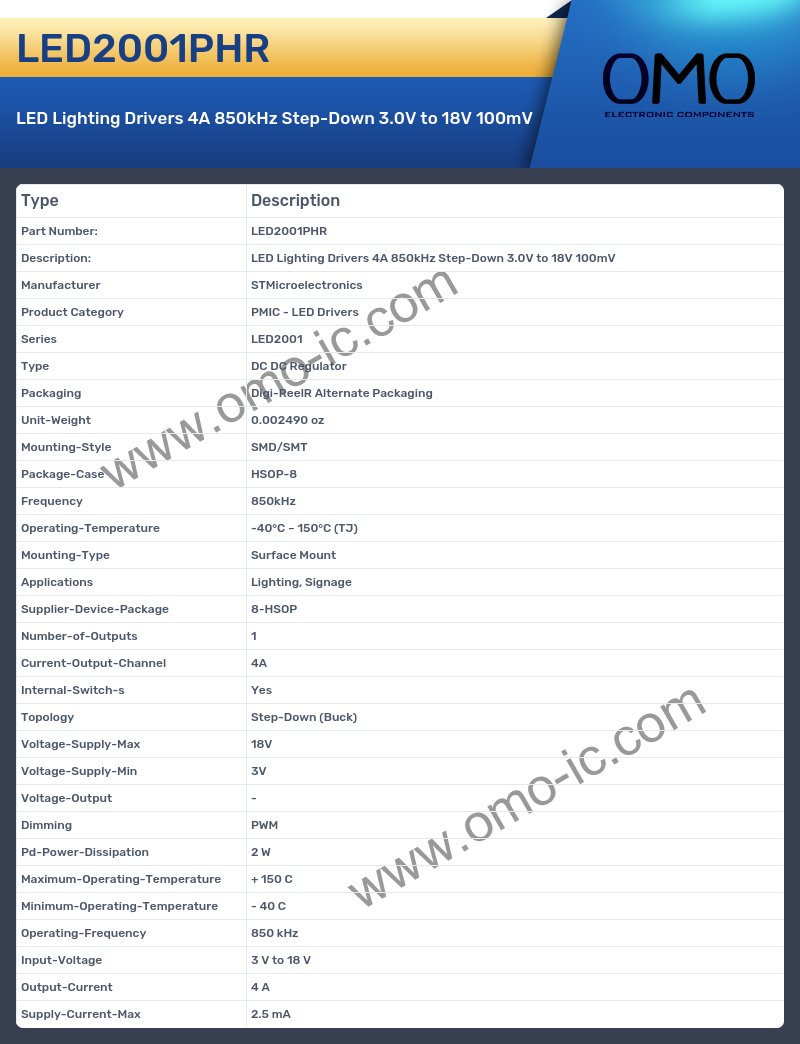

LED2001PHR Specifications
A: What is the Series of the product?
Q: The Series of the product is LED2001.
A: At what frequency does the Type?
Q: The product Type is DC DC Regulator.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002490 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is HSOP-8.
A: At what frequency does the Frequency?
Q: The product Frequency is 850kHz.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 150°C (TJ)
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Applications of the product?
Q: The Applications of the product is Lighting, Signage.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-HSOP.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1.
A: Is the cutoff frequency of the product Current-Output-Channel?
Q: Yes, the product's Current-Output-Channel is indeed 4A
A: At what frequency does the Internal-Switch-s?
Q: The product Internal-Switch-s is Yes.
A: At what frequency does the Topology?
Q: The product Topology is Step-Down (Buck).
A: What is the Voltage-Supply-Max of the product?
Q: The Voltage-Supply-Max of the product is 18V.
A: At what frequency does the Voltage-Supply-Min?
Q: The product Voltage-Supply-Min is 3V.
A: At what frequency does the Voltage-Output?
Q: The product Voltage-Output is -.
A: Is the cutoff frequency of the product Dimming?
Q: Yes, the product's Dimming is indeed PWM
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 2 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: At what frequency does the Operating-Frequency?
Q: The product Operating-Frequency is 850 kHz.
A: At what frequency does the Input-Voltage?
Q: The product Input-Voltage is 3 V to 18 V.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 4 A
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 2.5 mA.
