LED7708TR

LED7708TR Overview

Product belongs to the LED7708 series. Type: DC DC Controller Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style VFQFPN-48 This product's 250kHz ~ 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 48-VFQFPN (7x7) Number-of-Outputs: 16 Current-Output-Channel is 85mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 36V. The minimum 3.6V required for voltage supply. Output voltage: 36V Dimming control is done through PWM communication. The operating frequency is 250 kHz to 1 MHz. Input Voltage Range: 3.6 V to 36 V Output current: 20 mA to 85 mA

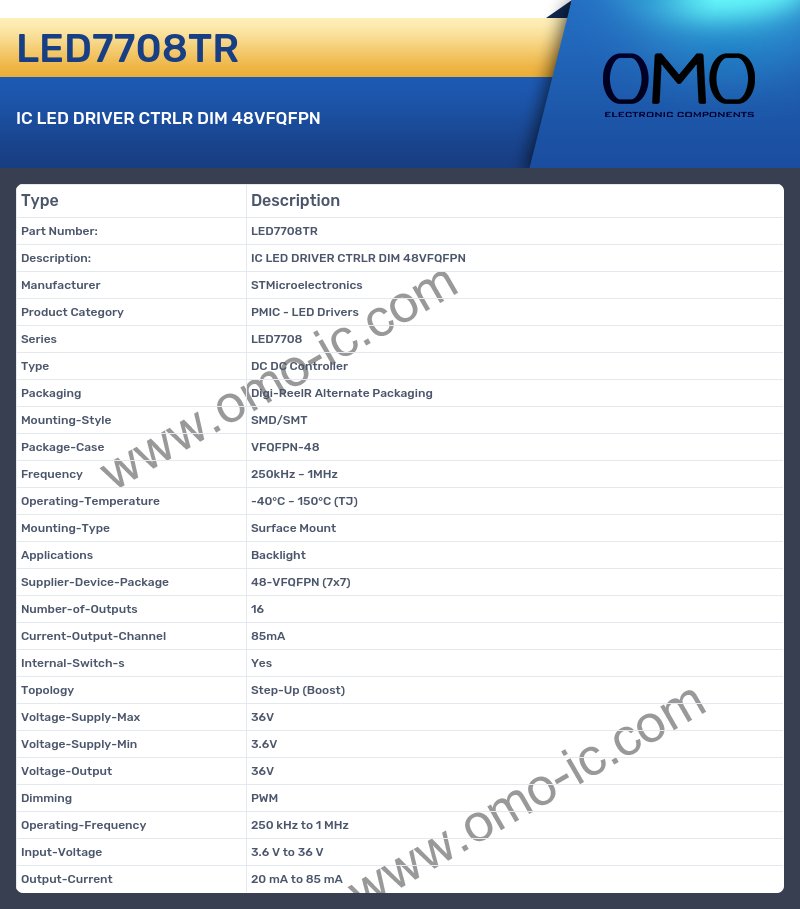

LED7708TR Image

LED7708TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - LED Drivers
• Series LED7708
• Type DC DC Controller
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case VFQFPN-48
• Frequency 250kHz ~ 1MHz
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 48-VFQFPN (7x7)
• Number-of-Outputs 16
• Current-Output-Channel 85mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 36V
• Voltage-Supply-Min 3.6V
• Voltage-Output 36V
• Dimming PWM
• Operating-Frequency 250 kHz to 1 MHz
• Input-Voltage 3.6 V to 36 V
• Output-Current 20 mA to 85 mA
