LM239J

LM239J Overview

Product belongs to the LM239-N series. This product is categorized as Analog Comparators Type: General Purpose Tube is the packaging method for this product Weight of 0.042329 oz Through Hole Mounting-Style CDIP-14 Operational temperature range: -25°C ~ 85°C Through Hole mounting type Output-Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-CDIP Voltage supply range: 2 V ~ 36 V, ±1 V ~ 18 V 4 element 2.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 700 ns response time Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 500 uA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 2 V General Purpose comparator type Input bias current of 250 nA The 5 mV.

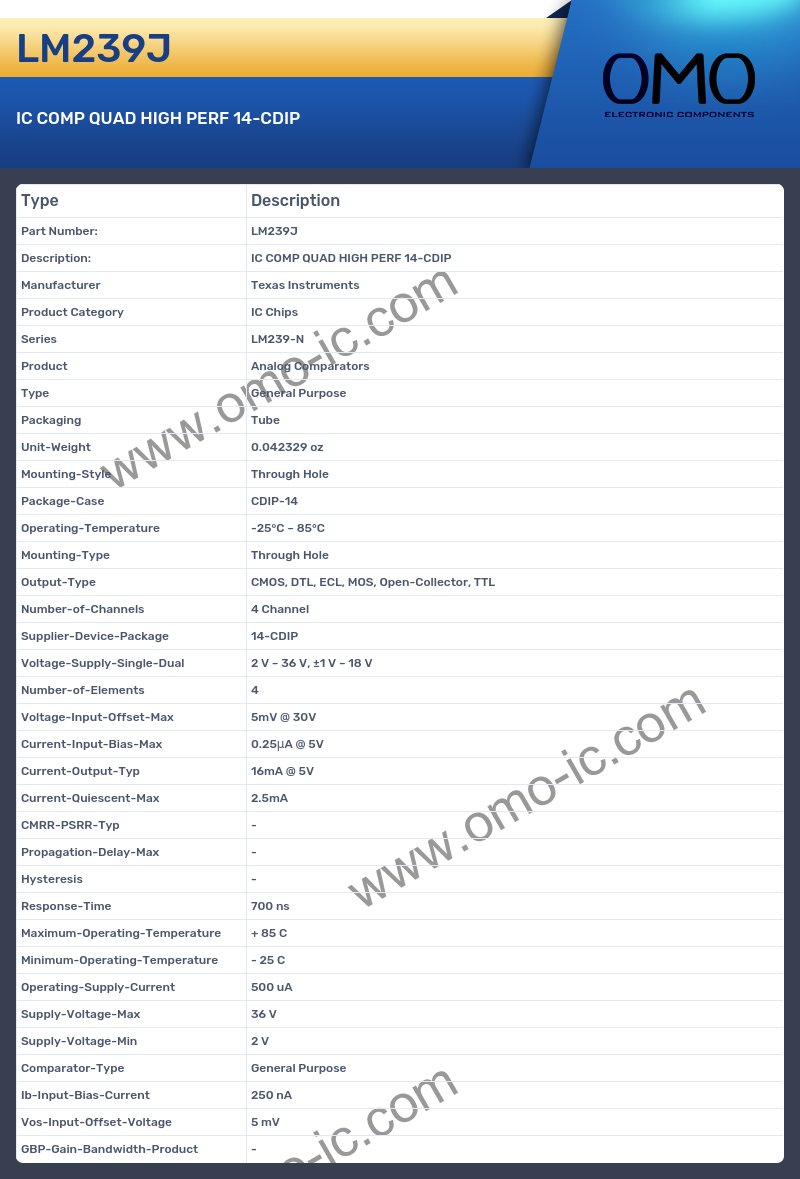

LM239J Image

LM239J Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series LM239-N
• Product Analog Comparators
• Type General Purpose
• Packaging Tube
• Unit-Weight 0.042329 oz
• Mounting-Style Through Hole
• Package-Case CDIP-14
• Operating-Temperature -25°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type CMOS, DTL, ECL, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-CDIP
• Voltage-Supply-Single-Dual 2 V ~ 36 V, ±1 V ~ 18 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 30V
• Current-Input-Bias-Max 0.25μA @ 5V
• Current-Output-Typ 16mA @ 5V
• Current-Quiescent-Max 2.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 700 ns
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 500 uA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 5 mV
• GBP-Gain-Bandwidth-Product -
