LM2991T

LM2991T Overview

Product belongs to the LM2991 series. This product is categorized as Negative Low Dropout Adjustable Regulator Type: Output Voltage Adjustable Tube is the packaging method for this product Weight of 0.105822 oz Through Hole Mounting-Style TO-220-5 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-220-5 Down to -26V voltage input Number-of-Outputs: 1 Output Output voltage: -3 V ~ -24 V Negative Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: - 24 V to - 3 V Maximum Input Voltage: 300 mV Output current: 1 A The product's - 26 V is 5.1 V. Load regulation is 0.4 %. Input bias current of 700 uA This product has a 5 mA of 7 mA, making it ideal for low-power applications. Reference voltage is - 1.186 V . The 0.1 V at 100 mA 0.6 V at 1 A. The maximum 0.2 V at 100 mA 0.8 V at 1 A is 360 mV. This product's 0.04 %/V is 0.01 %/V. The product's 60 dB is -20 dB.

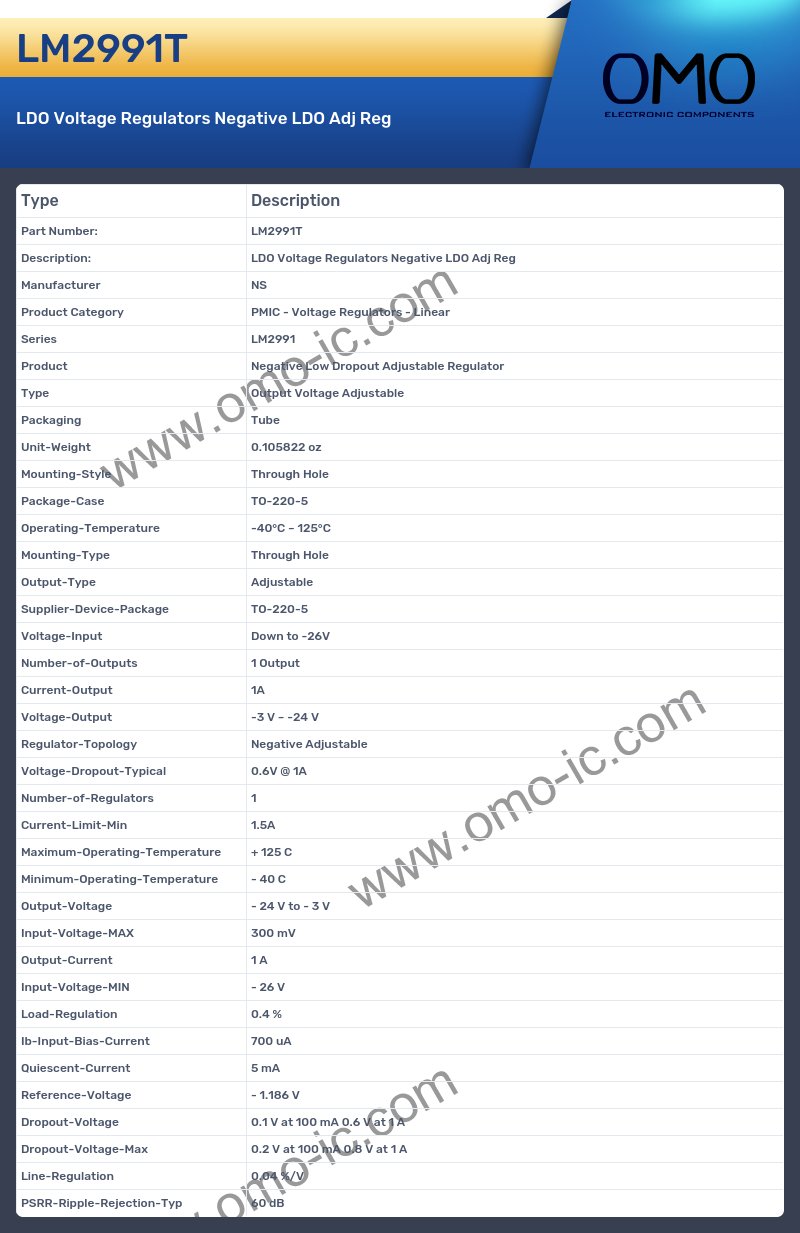

LM2991T Image

LM2991T Specifications

• Manufacturer NS
• Product Category PMIC - Voltage Regulators - Linear
• Series LM2991
• Product Negative Low Dropout Adjustable Regulator
• Type Output Voltage Adjustable
• Packaging Tube
• Unit-Weight 0.105822 oz
• Mounting-Style Through Hole
• Package-Case TO-220-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package TO-220-5
• Voltage-Input Down to -26V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output -3 V ~ -24 V
• Regulator-Topology Negative Adjustable
• Voltage-Dropout-Typical 0.6V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min 1.5A
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage - 24 V to - 3 V
• Input-Voltage-MAX 300 mV
• Output-Current 1 A
• Input-Voltage-MIN - 26 V
• Load-Regulation 0.4 %
• Ib-Input-Bias-Current 700 uA
• Quiescent-Current 5 mA
• Reference-Voltage - 1.186 V
• Dropout-Voltage 0.1 V at 100 mA 0.6 V at 1 A
• Dropout-Voltage-Max 0.2 V at 100 mA 0.8 V at 1 A
• Line-Regulation 0.04 %/V
• PSRR-Ripple-Rejection-Typ 60 dB
