LM311DT

LM311DT Overview

Product belongs to the LM311 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL Number of channels: 1 Channel Supplier device package: 8-SO Voltage supply range: 5 V ~ 30 V, ±2.5 V ~ 15 V 1 element 7.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 200 ns response time Power-off control: No Shutdown Power-off control: 710 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 6 mA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 5 V Input bias current of 250 nA The 7.5 mV. The 70 nA. The Negative Rail - 14.5 V to Positive Rail + 13 V. 50 mA

LM311DT Image

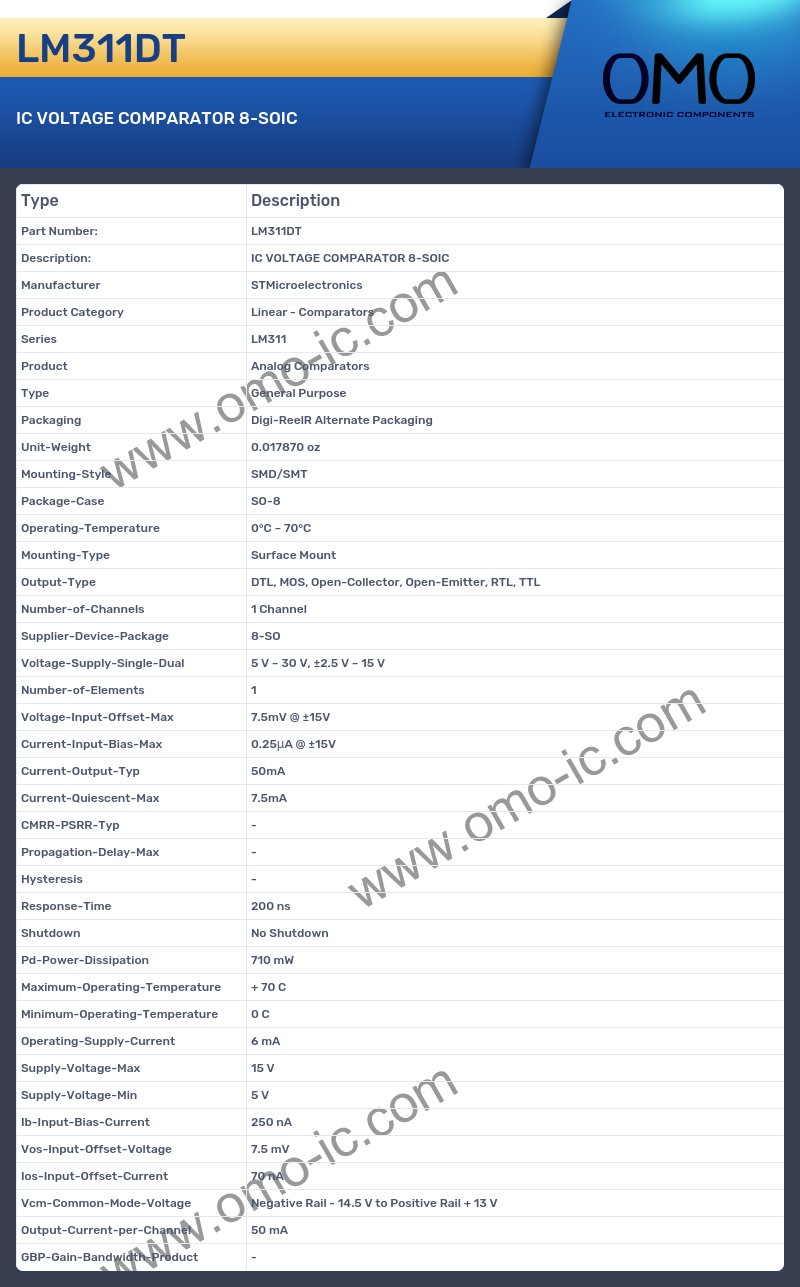

LM311DT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series LM311
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SO
• Voltage-Supply-Single-Dual 5 V ~ 30 V, ±2.5 V ~ 15 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 7.5mV @ ±15V
• Current-Input-Bias-Max 0.25μA @ ±15V
• Current-Output-Typ 50mA
• Current-Quiescent-Max 7.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 200 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 6 mA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 7.5 mV
• Ios-Input-Offset-Current 70 nA
• Vcm-Common-Mode-Voltage Negative Rail - 14.5 V to Positive Rail + 13 V
• Output-Current-per-Channel 50 mA
• GBP-Gain-Bandwidth-Product -
