LM339DBRE4

LM339DBRE4 Overview

Product belongs to the LM339 series. This product is categorized as Analog Comparators Type: Differential Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style SSOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-SSOP Voltage supply range: 2 V ~ 30 V, ±1 V ~ 15 V 4 element 2.5mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 2 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 2 V Differential comparator type Input bias current of 250 nA The 5 mV. 6 mA

LM339DBRE4 Image

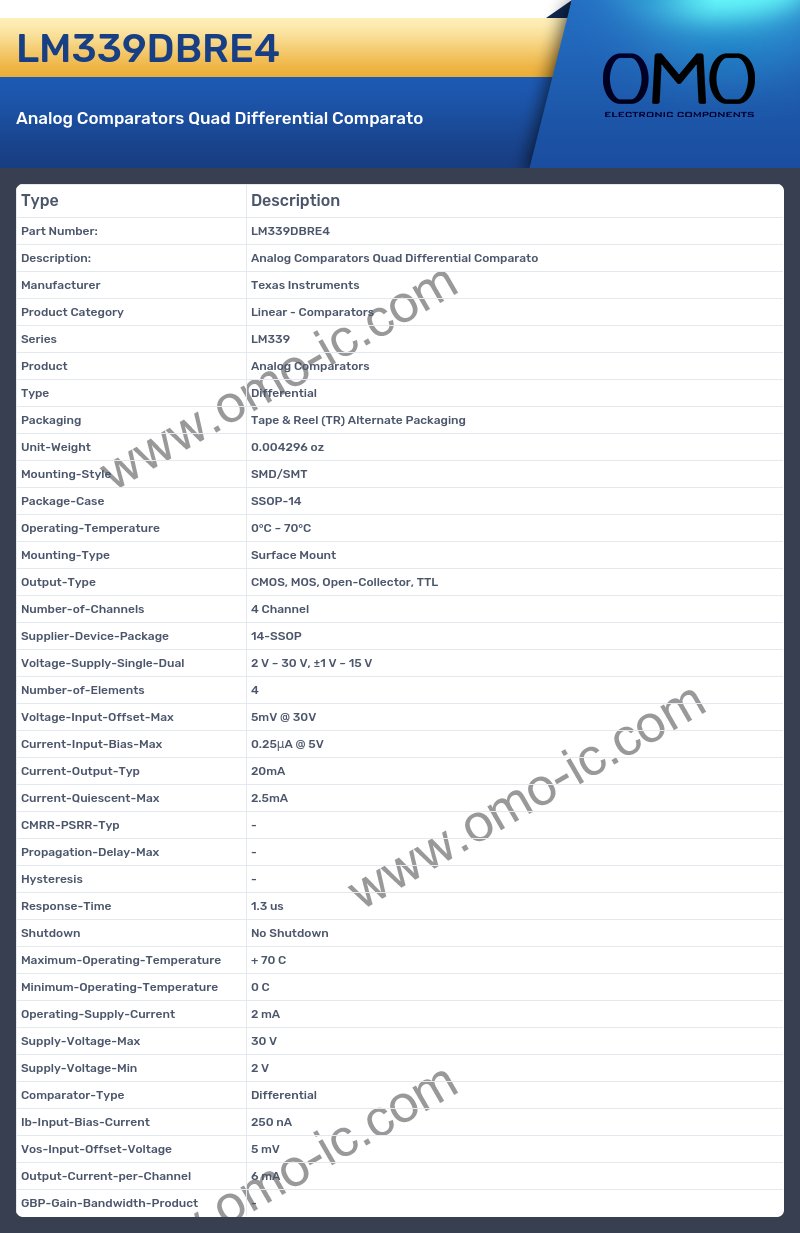

LM339DBRE4 Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM339
• Product Analog Comparators
• Type Differential
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004296 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SSOP
• Voltage-Supply-Single-Dual 2 V ~ 30 V, ±1 V ~ 15 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 30V
• Current-Input-Bias-Max 0.25μA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 2.5mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 2 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 2 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 5 mV
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
