| Mfr. #: | LM431AIM |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Voltage References Adjustable Precision Zener Shunt Regulator 8-SOIC -40 to 85 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | LM431AIM Datasheet |
Product belongs to the LM431 series. Tube is the packaging method for this product Weight of 0.005044 oz SMD/SMT Mounting-Style SOIC-8 Narrow Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC Tolerance of ±2.2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.495V . 50ppm/°C Typical is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 2.495 V to 37 V Initial accuracy: 2 % Maximum input voltage of 37 V for Series VREF. Maximum shunt current of 100 mA Maximum output voltage is 36 V .
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

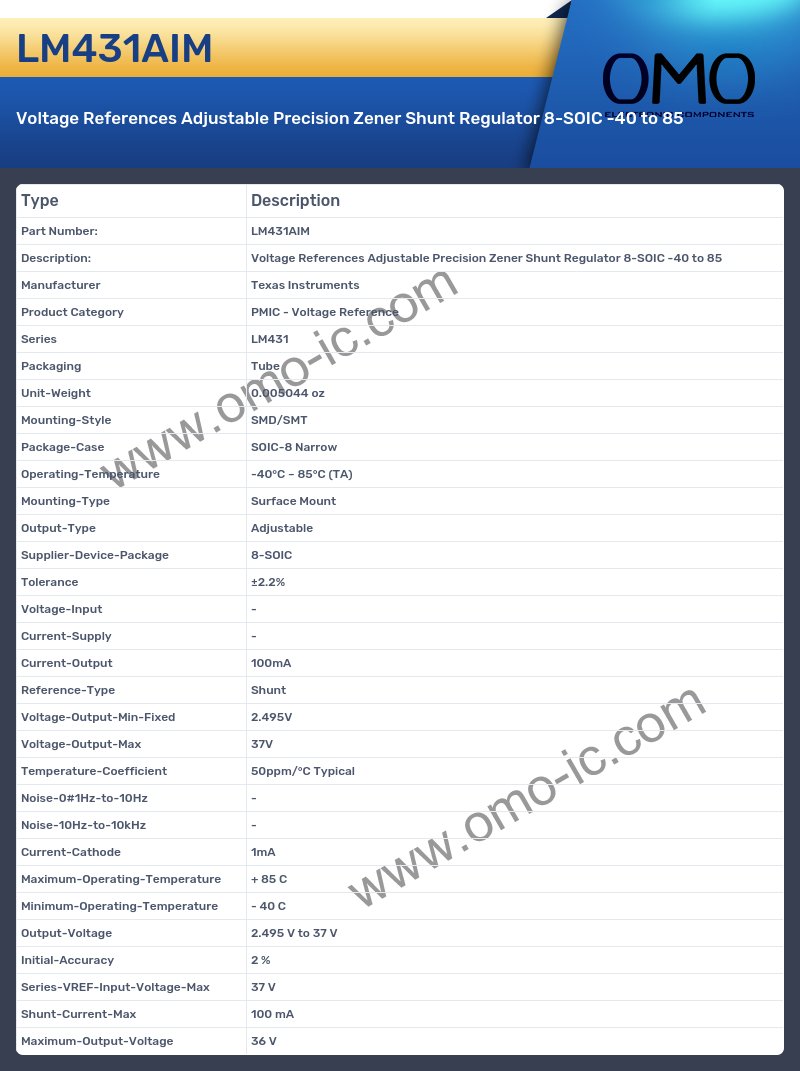

LM431AIM Specifications
