LM5117PMH/NOPB

LM5117PMH/NOPB Overview

Product belongs to the LM5117 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 20-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 5.5 V ~ 65 V This product features 'Frequency-Switching' at 200kHz, 480kHz for optimal performance. The Control-Features include Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 14.5 V Input Voltage Range: 5.5 V to 65 V Output current: 3.3 A Switching frequency is 50 kHz to 750 kHz The LM5117EVAL/NOPB.

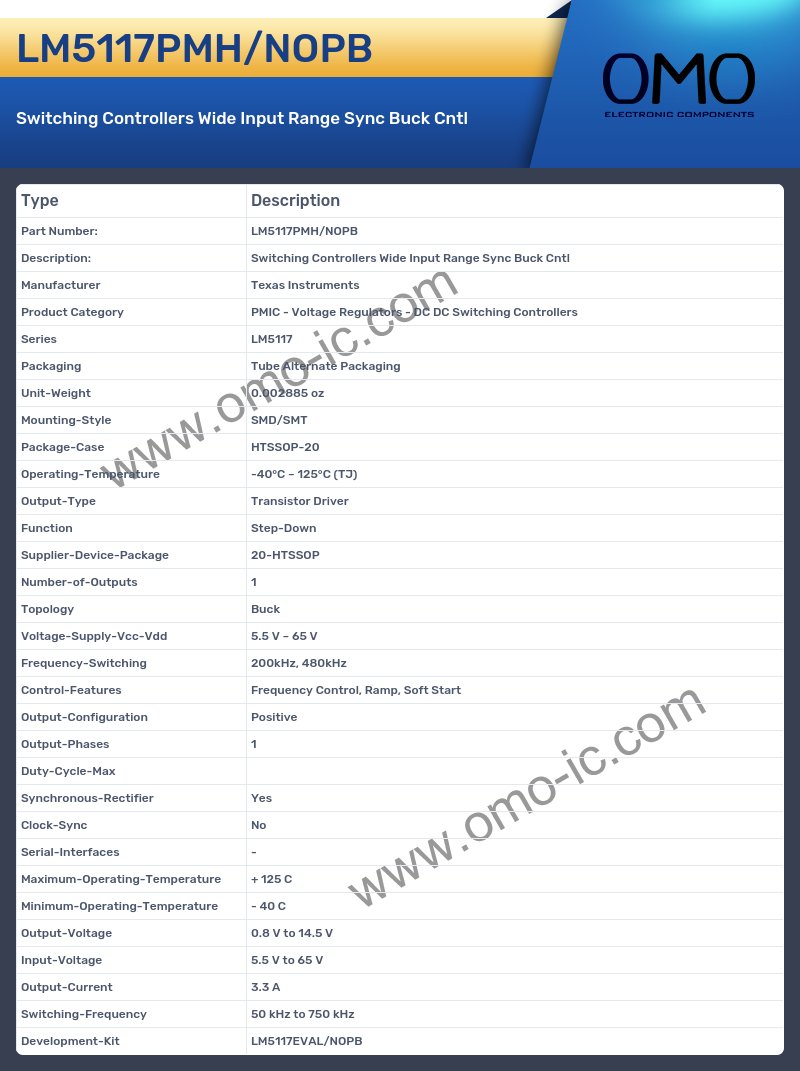

LM5117PMH/NOPB Image

LM5117PMH/NOPB Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series LM5117
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 20-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 5.5 V ~ 65 V
• Frequency-Switching 200kHz, 480kHz
• Control-Features Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.8 V to 14.5 V
• Input-Voltage 5.5 V to 65 V
• Output-Current 3.3 A
• Switching-Frequency 50 kHz to 750 kHz
• Development-Kit LM5117EVAL/NOPB
