LM5642MTC

LM5642MTC Overview

Product belongs to the LM5642 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.014215 oz SMD/SMT Mounting-Style TSSOP-28 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 28-TSSOP Number-of-Outputs: 2 Topology: Buck feedback Supply Voltage: 4.5 V ~ 36 V This product features 'Frequency-Switching' at 200kHz for optimal performance. The Control-Features include Current Limit, Enable, Soft Start function. The Positive. Output-Phases: 2 Maximum duty cycle of 98.9 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.3 V to 32.4 V Input Voltage Range: 4.5 V to 36 V Output current: 20 A Switching frequency is 150 kHz to 250 kHz The LM5642EVAL-KIT/NOPB.

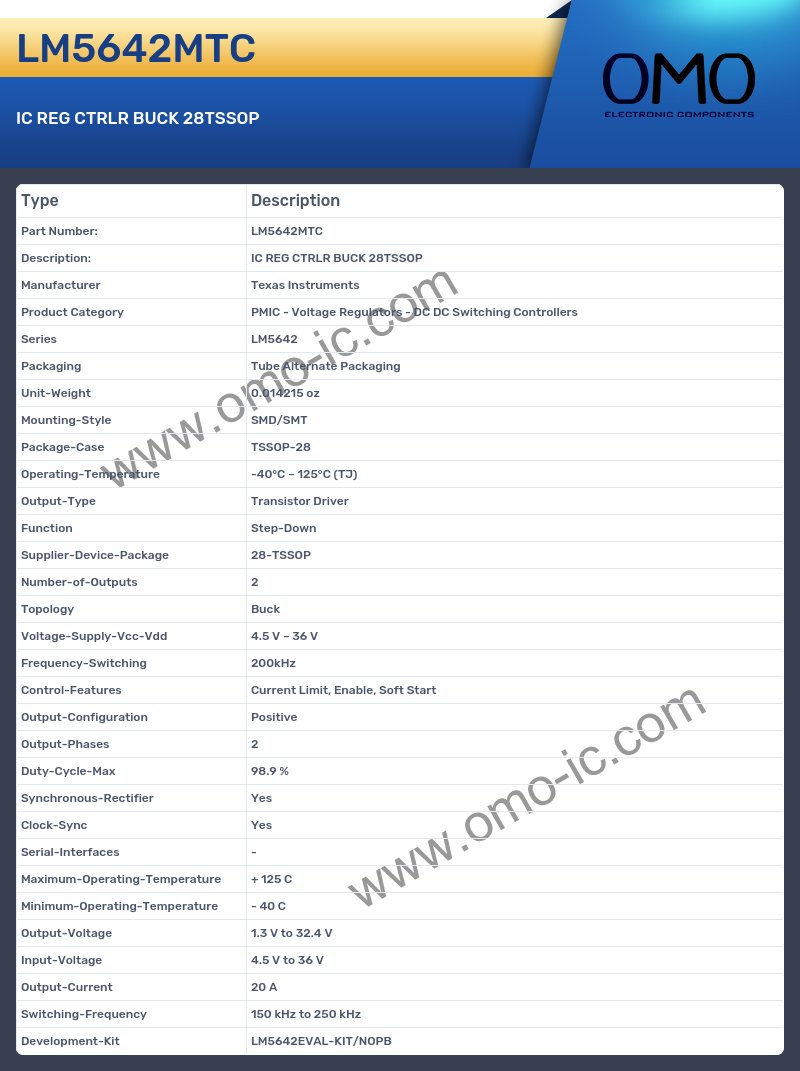

LM5642MTC Image

LM5642MTC Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series LM5642
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014215 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 28-TSSOP
• Number-of-Outputs 2
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 36 V
• Frequency-Switching 200kHz
• Control-Features Current Limit, Enable, Soft Start
• Output-Configuration Positive
• Output-Phases 2
• Duty-Cycle-Max 98.9 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.3 V to 32.4 V
• Input-Voltage 4.5 V to 36 V
• Output-Current 20 A
• Switching-Frequency 150 kHz to 250 kHz
• Development-Kit LM5642EVAL-KIT/NOPB
