LMH6505MAX

LMH6505MAX Overview

Product belongs to the LMH6505 series. This product is categorized as Variable Gain Amplifiers Reel is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style The Rail to Rail for this product is CMOS/TTL. Number of channels: 1 Channel The amplifier is of VGA type. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 16 mA at +/- 5 V is 92 nA. Maximum supply voltage of 12 V Minimum supply voltage is 7 V SOIC-8 Input bias current of 3.7 uA The 55 mV. The 65 dB. The 4.4 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Gain in voltage per voltage: 1 V/V 80 dB voltage gain Maximum Input Resistance" is " 7 MOhms (Typ) at +/- 5 V

LMH6505MAX Image

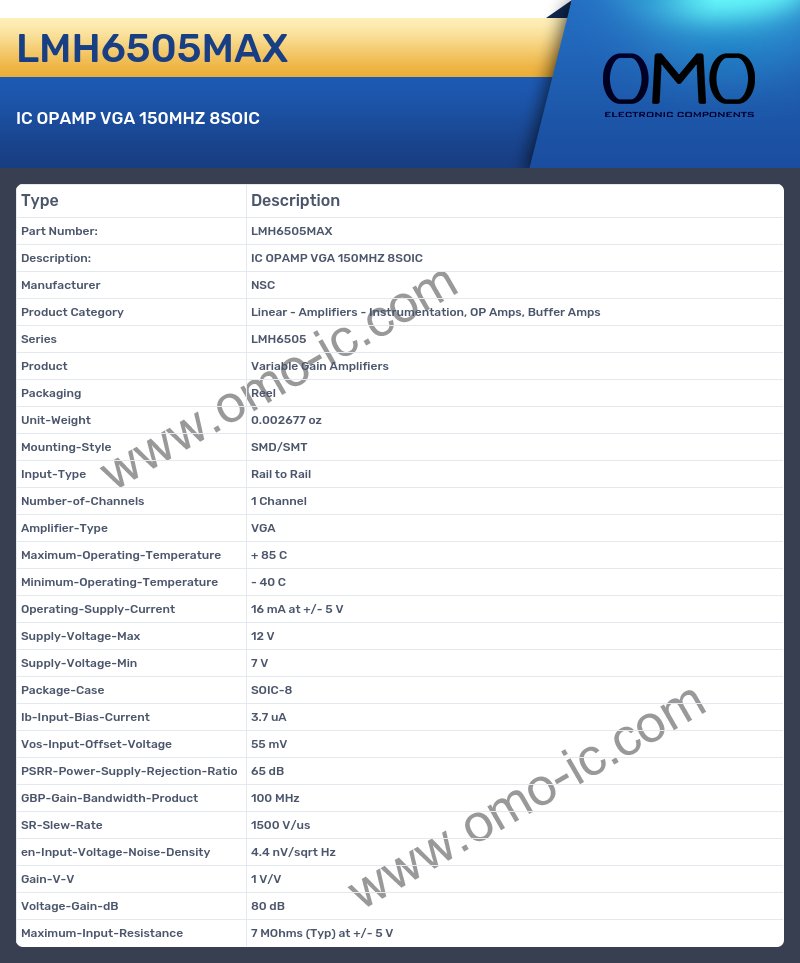

LMH6505MAX Specifications

• Manufacturer NSC
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series LMH6505
• Product Variable Gain Amplifiers
• Packaging Reel
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Input-Type Rail to Rail
• Number-of-Channels 1 Channel
• Amplifier-Type VGA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 16 mA at +/- 5 V
• Supply-Voltage-Max 12 V
• Supply-Voltage-Min 7 V
• Package-Case SOIC-8
• Ib-Input-Bias-Current 3.7 uA
• Vos-Input-Offset-Voltage 55 mV
• PSRR-Power-Supply-Rejection-Ratio 65 dB
• GBP-Gain-Bandwidth-Product 100 MHz
• SR-Slew-Rate 1500 V/us
• en-Input-Voltage-Noise-Density 4.4 nV/sqrt Hz
• Gain-V-V 1 V/V
• Voltage-Gain-dB 80 dB
• Maximum-Input-Resistance 7 MOhms (Typ) at +/- 5 V
