LMH6722MAX

LMH6722MAX Overview

Product belongs to the VIP10 series. This product is categorized as Operational Amplifiers Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: LMH. SOIC-Narrow-14 BiCOM is the technology used. Surface Mount mounting type Output-Type: - Versatile Current Feedback applications for maximum usability Number of channels: 4 Channel Supplier device package: 14-SOICN 4 is 8. Voltage supply range: 8 V ~ 12.5 V, ±4 V ~ 6.25 V This product has a 5.6mA of 200μA. The 400MHz The 1800 V/μs. Current-Output-Channel is 70mA Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 30 mA is 92 nA. Maximum supply voltage of 12.5 V Minimum supply voltage is 8 V Input bias current of 10 uA at +/- 5 V The 6 mV. The 48 dB. 70 mA The CMRR-Common-Mode-Rejection-Ratio is 48 dB. The 3.4 nV/sqrt Hz at +/- 5 V of this product is 110 nV/sqrt Hz. The 1.2 pA/sqrt Hz. Maximum dual supply voltage: +/- 6.25 V Minimum dual supply voltage of +/- 4 V

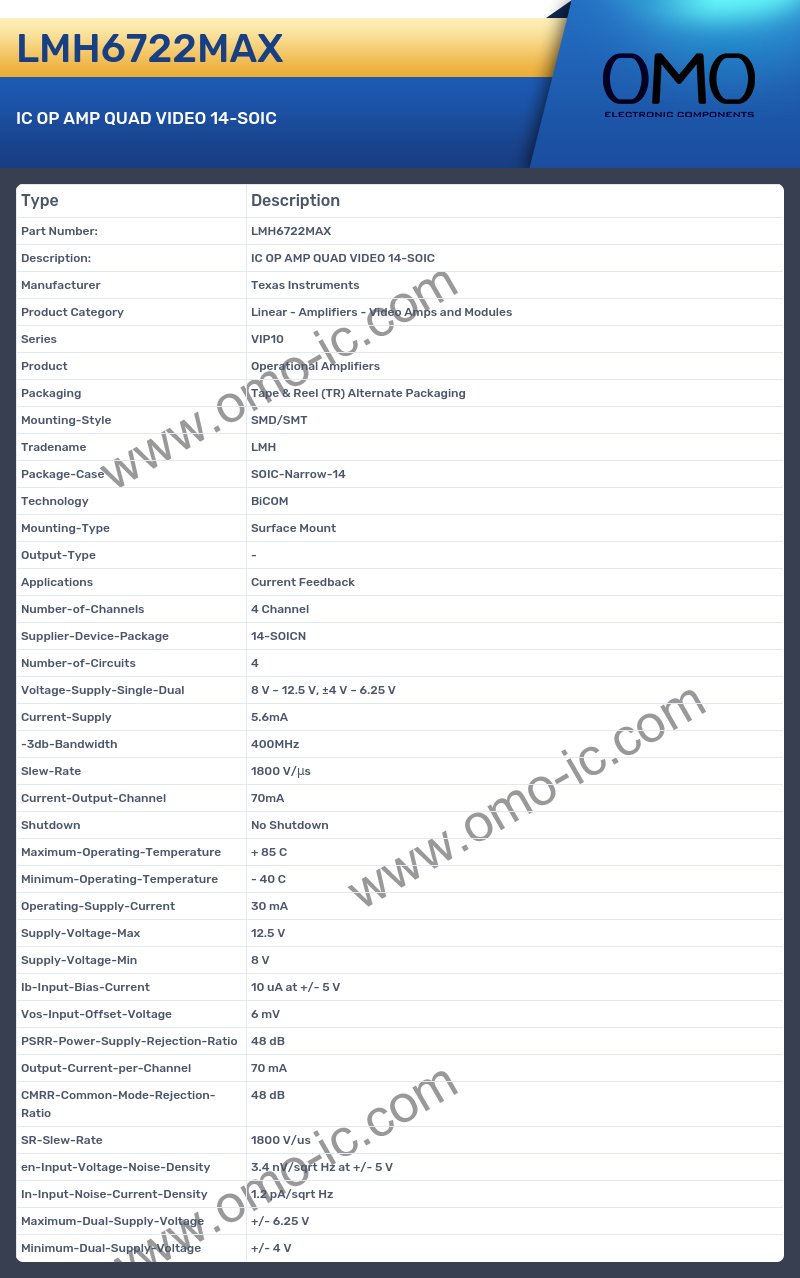

LMH6722MAX Image

LMH6722MAX Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series VIP10
• Product Operational Amplifiers
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename LMH
• Package-Case SOIC-Narrow-14
• Technology BiCOM
• Mounting-Type Surface Mount
• Output-Type -
• Applications Current Feedback
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOICN
• Number-of-Circuits 4
• Voltage-Supply-Single-Dual 8 V ~ 12.5 V, ±4 V ~ 6.25 V
• Current-Supply 5.6mA
• -3db-Bandwidth 400MHz
• Slew-Rate 1800 V/μs
• Current-Output-Channel 70mA
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 mA
• Supply-Voltage-Max 12.5 V
• Supply-Voltage-Min 8 V
• Ib-Input-Bias-Current 10 uA at +/- 5 V
• Vos-Input-Offset-Voltage 6 mV
• PSRR-Power-Supply-Rejection-Ratio 48 dB
• Output-Current-per-Channel 70 mA
• CMRR-Common-Mode-Rejection-Ratio 48 dB
• SR-Slew-Rate 1800 V/us
• en-Input-Voltage-Noise-Density 3.4 nV/sqrt Hz at +/- 5 V
• In-Input-Noise-Current-Density 1.2 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 6.25 V
• Minimum-Dual-Supply-Voltage +/- 4 V
