LMR10520YSDE/NOPB

LMR10520YSDE/NOPB Overview

Product belongs to the SIMPLE SWITCHERR series. Type: Step Down Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style Trade name: Simple Switcher. Wide - 40 C to + 125 C operating temperature range for diverse applications WSON-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 6-WSON (3x3) Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 3MHz for optimal performance. The Positive. Minimum fixed output voltage is 0.6V . The value of No is included as a product attribute. The minimum input voltage is 3V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 600 mV to 4.5 V 4.3 mA is 92 nA. Input Voltage Range: 3 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 2 A Switching frequency is 3 MHz The product's 3 V is 5.1 V. The LMR10520YSDDEMO/NOPB.

LMR10520YSDE/NOPB Image

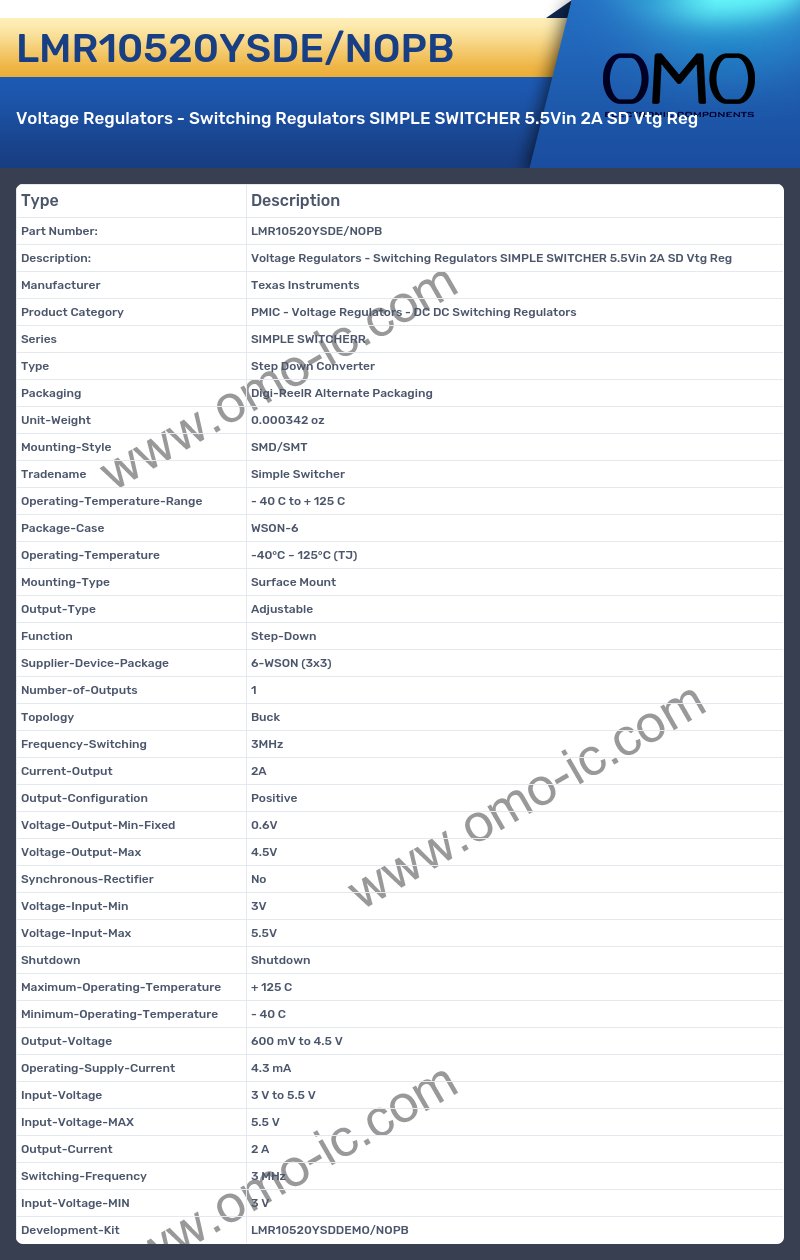

LMR10520YSDE/NOPB Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SIMPLE SWITCHERR
• Type Step Down Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Tradename Simple Switcher
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 6-WSON (3x3)
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 3MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.6V
• Voltage-Output-Max 4.5V
• Synchronous-Rectifier No
• Voltage-Input-Min 3V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 600 mV to 4.5 V
• Operating-Supply-Current 4.3 mA
• Input-Voltage 3 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 2 A
• Switching-Frequency 3 MHz
• Input-Voltage-MIN 3 V
• Development-Kit LMR10520YSDDEMO/NOPB
