LS101MAXE7DFA

LS101MAXE7DFA Overview

Product belongs to the QorlQ LS1 series. Tray is the packaging method for this product Weight of 0.061821 oz SMD/SMT Mounting-Style PBGA-448 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 448-PBGA w/Heat Spreader (23x23) L1 Cache SRAM memory type * voltage I/O Operating frequency: 650MHz The processor has a 1 Core, 32-Bit architecture. This product's - co-processor DSP offers high-performance signal processing capabilities. RAM-Controllers:DDR2 The Graphics-Acceleration attribute for this product is No. Ethernet with a transmission rate of GbE (2) 1 Core Number of Cores Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 980 mV supply voltage for reliable performance. Ethernet I2C PCIe SPI UART USB interface type Processor Core: ARM1136 The 32 bit. Maximum clock frequency of 533 MHz This product has 31 I/O connections. L1 Cache Instruction Memory of 64 kB. The L1 Cache Data Memory is 64 kB. This product has a 128 kB data RAM size, providing ample storage for complex applications. This product features an 3.3 V, providing flexibility for a variety of applications. This product features 6 x 32 bit number of timers and counters. This product includes Watchdog Timer

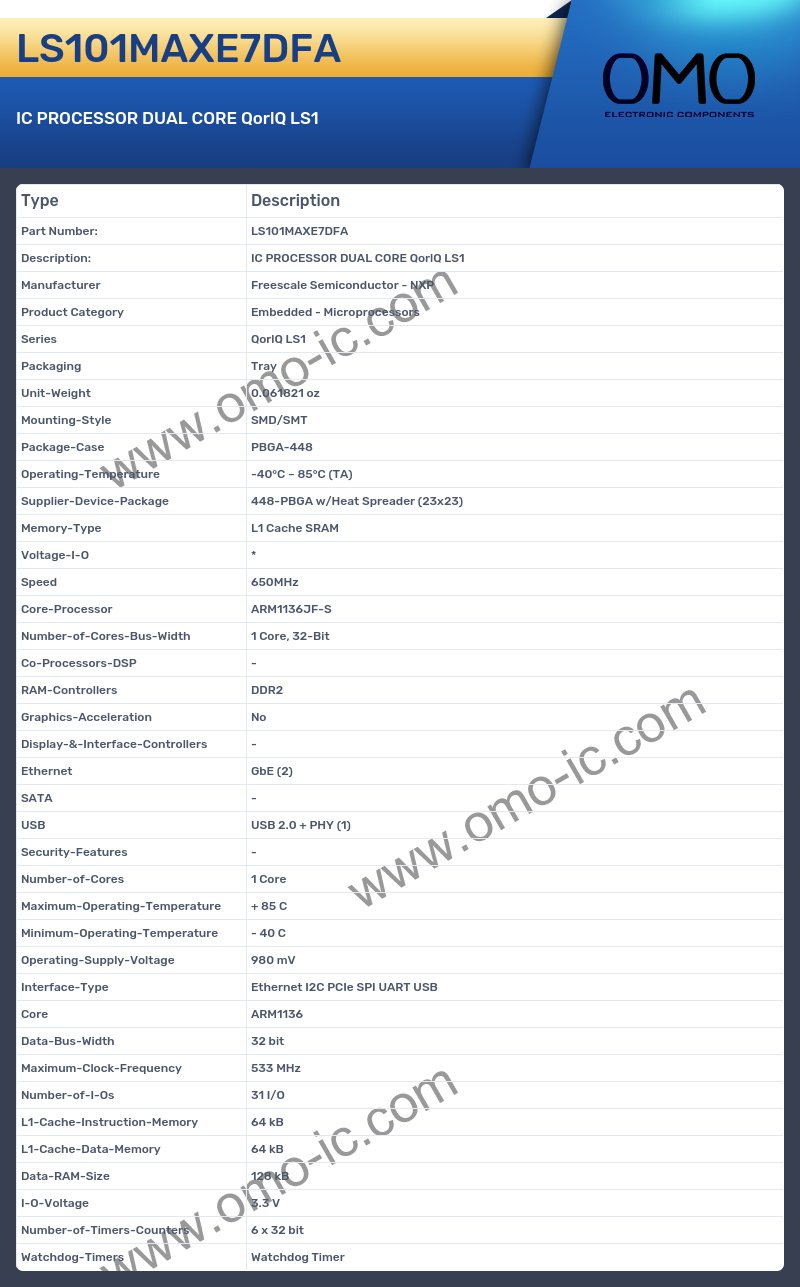

LS101MAXE7DFA Image

LS101MAXE7DFA Specifications

• Manufacturer Freescale Semiconductor - NXP
• Product Category Embedded - Microprocessors
• Series QorlQ LS1
• Packaging Tray
• Unit-Weight 0.061821 oz
• Mounting-Style SMD/SMT
• Package-Case PBGA-448
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 448-PBGA w/Heat Spreader (23x23)
• Memory-Type L1 Cache SRAM
• Voltage-I-O *
• Speed 650MHz
• Core-Processor ARM1136JF-S
• Number-of-Cores-Bus-Width 1 Core, 32-Bit
• Co-Processors-DSP -
• RAM-Controllers DDR2
• Graphics-Acceleration No
• Display-&-Interface-Controllers -
• Ethernet GbE (2)
• SATA -
• USB USB 2.0 + PHY (1)
• Security-Features -
• Number-of-Cores 1 Core
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 980 mV
• Interface-Type Ethernet I2C PCIe SPI UART USB
• Core ARM1136
• Data-Bus-Width 32 bit
• Maximum-Clock-Frequency 533 MHz
• Number-of-I-Os 31 I/O
• L1-Cache-Instruction-Memory 64 kB
• L1-Cache-Data-Memory 64 kB
• Data-RAM-Size 128 kB
• I-O-Voltage 3.3 V
• Number-of-Timers-Counters 6 x 32 bit
• Watchdog-Timers Watchdog Timer
