LT1009CLPM

LT1009CLPM Overview

Product belongs to the LT1009 series. Tape & Box (TB) Alternate Packaging is the packaging method for this product Weight of 0.007520 oz Through Hole Mounting-Style TO-92-3 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: TO-92-3 Tolerance of ±0.2% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 2.5V . 25ppm/°C is 30 parts per million per degree Celsius. - of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 2.5 V Initial accuracy: 0.2 % Maximum shunt current of 10 mA This product has a minimum 400 uA of 50 uA.

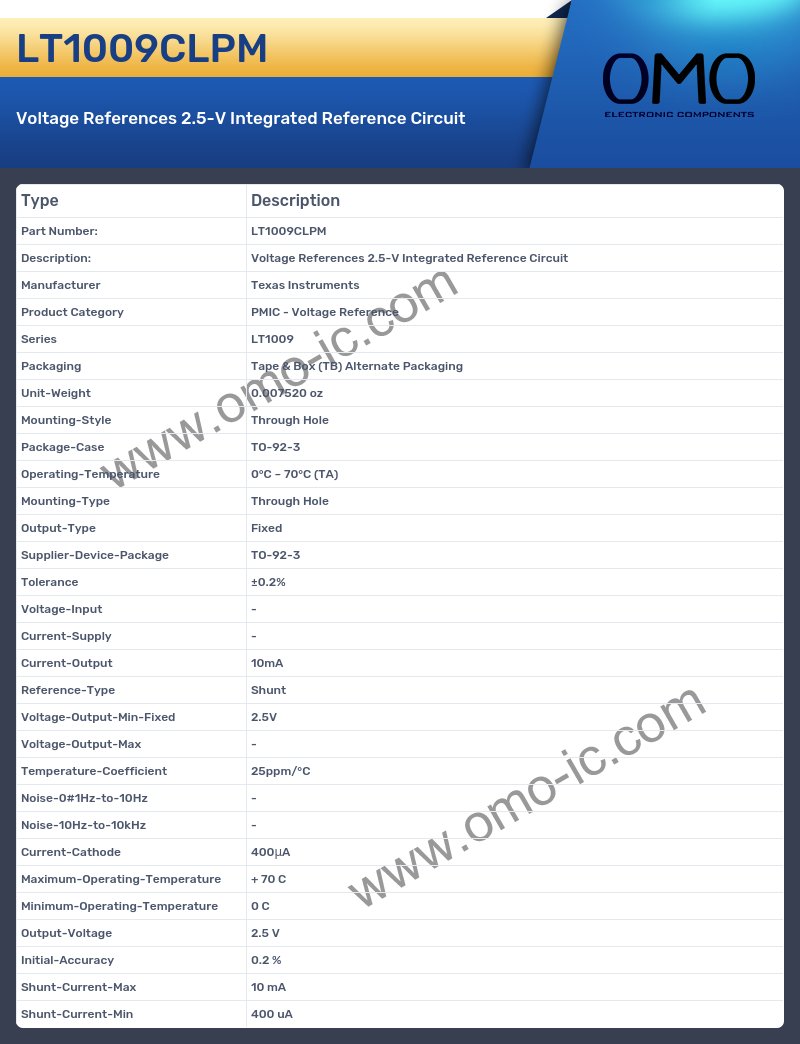

LT1009CLPM Image

LT1009CLPM Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series LT1009
• Packaging Tape & Box (TB) Alternate Packaging
• Unit-Weight 0.007520 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-92-3
• Tolerance ±0.2%
• Voltage-Input -
• Current-Supply -
• Current-Output 10mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 2.5V
• Voltage-Output-Max -
• Temperature-Coefficient 25ppm/°C
• Noise-0#1Hz-to-10Hz -
• Noise-10Hz-to-10kHz -
• Current-Cathode 400μA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 2.5 V
• Initial-Accuracy 0.2 %
• Shunt-Current-Max 10 mA
• Shunt-Current-Min 400 uA
