LT1054CP

LT1054CP Overview

Product belongs to the LT1054 series. Type: Charge Pump (Inductorless) Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications PDIP-8 Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Adjustable (Fixed) Product function is Ratiometric, Step-Up. Supplier device package: 8-PDIP Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 25kHz for optimal performance. The Positive or Negative. Minimum fixed output voltage is 3.5V (-Vin, 2Vin) . The value of No is included as a product attribute. The minimum input voltage is 3.5V. The 15V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: - 5 V Input Voltage Range: 3.5 V to 15 V Maximum Input Voltage: 15 V Output current: 100 mA Switching frequency is 25 kHz The product's 3.5 V is 5.1 V. Minimum supply voltage is 3.5 V

LT1054CP Image

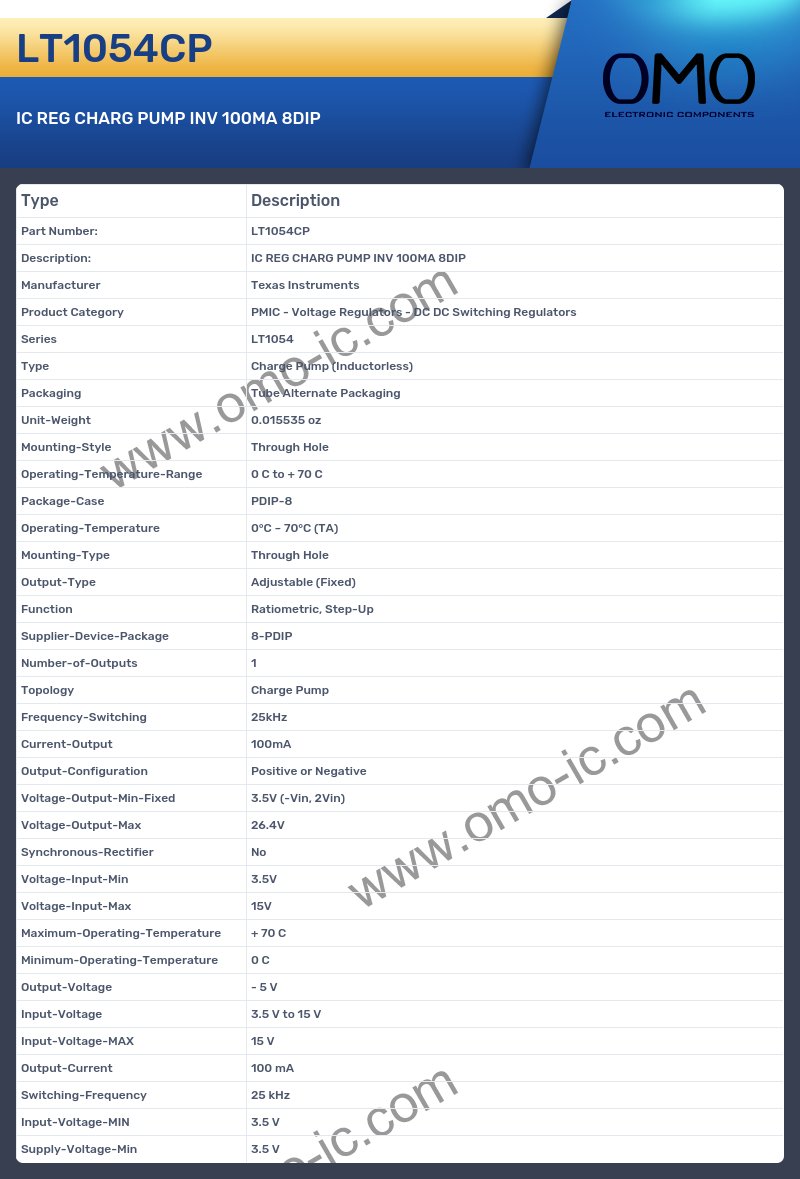

LT1054CP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series LT1054
• Type Charge Pump (Inductorless)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case PDIP-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Adjustable (Fixed)
• Function Ratiometric, Step-Up
• Supplier-Device-Package 8-PDIP
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 25kHz
• Current-Output 100mA
• Output-Configuration Positive or Negative
• Voltage-Output-Min-Fixed 3.5V (-Vin, 2Vin)
• Voltage-Output-Max 26.4V
• Synchronous-Rectifier No
• Voltage-Input-Min 3.5V
• Voltage-Input-Max 15V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage - 5 V
• Input-Voltage 3.5 V to 15 V
• Input-Voltage-MAX 15 V
• Output-Current 100 mA
• Switching-Frequency 25 kHz
• Input-Voltage-MIN 3.5 V
• Supply-Voltage-Min 3.5 V
