M74HC132YRM13TR

M74HC132YRM13TR Overview

Product belongs to the Automotive, AEC-Q100, 74HC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.009143 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SO-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SO 4 is 8. 4 Gate is the number of gates included in this product. 1μA maximum quiescent current. NAND Gate logic type 0.3 V ~ 1.5 V is a Logic-Level-Low; 1.5 V ~ 4.2 V is the Logic-Level-High Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 6 V Maximum supply voltage of 6 V Minimum supply voltage is 2 V 74HC logic type 52 ns is 23 microseconds. Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 2 Output NAND logic function

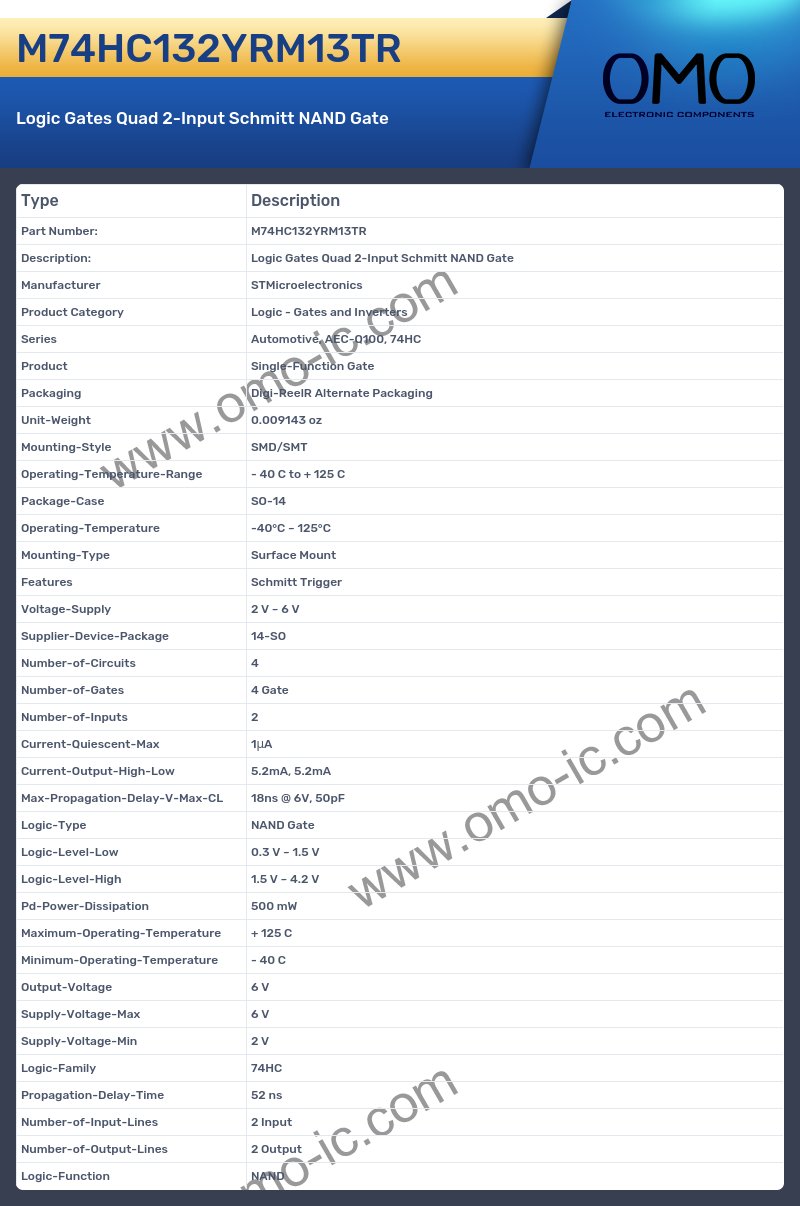

M74HC132YRM13TR Image

M74HC132YRM13TR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Gates and Inverters
• Series Automotive, AEC-Q100, 74HC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.009143 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SO-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SO
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 18ns @ 6V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.3 V ~ 1.5 V
• Logic-Level-High 1.5 V ~ 4.2 V
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 6 V
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family 74HC
• Propagation-Delay-Time 52 ns
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 2 Output
• Logic-Function NAND
