| Mfr. #: | M74HC244TTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Buffers & Line Drivers Octal Bus Buffe |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | M74HC244TTR Datasheet |
Product belongs to the 74HC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.014850 oz SMD/SMT Mounting-Style TSSOP-48 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 2 V ~ 6 V Supplier device package: 20-TSSOP 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Non-Inverting Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 130 ns at 2 V 26 ns at 4.5 V 22 ns at 6 V is 23 microseconds. High-Level-Output-Current of - 7.8 mA 7.8 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

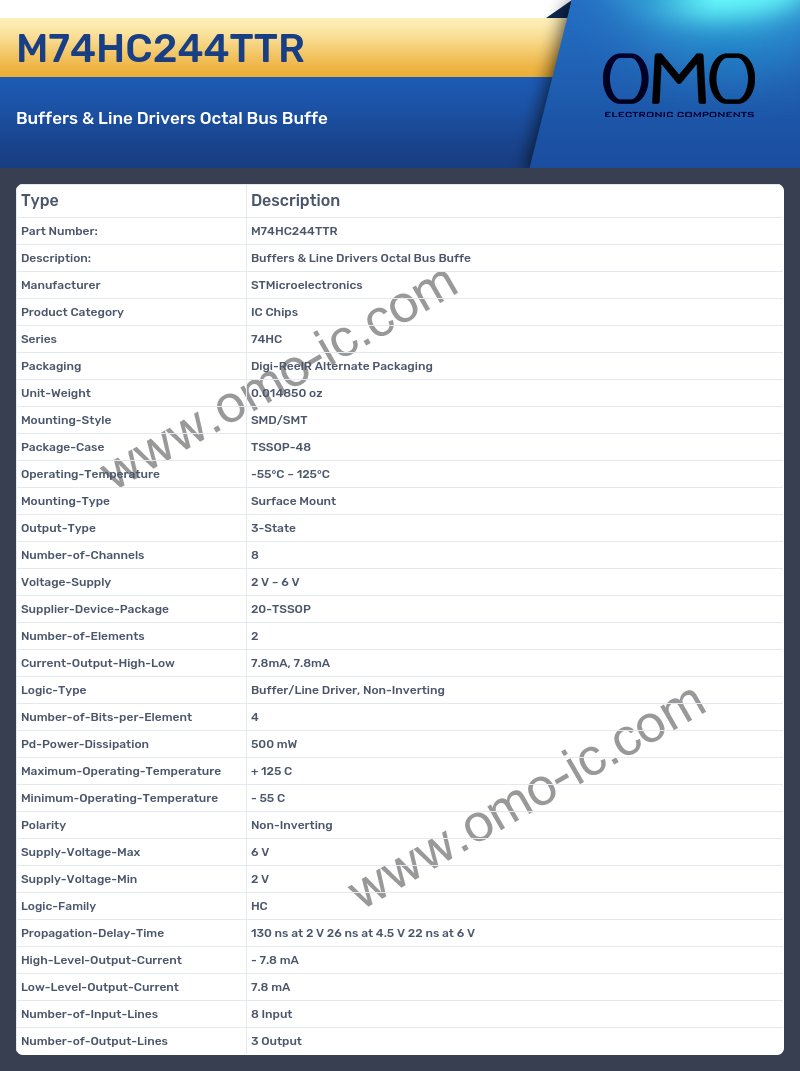

M74HC244TTR Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 74HC
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.014850 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TSSOP-48.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 125°C
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 8.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 2 V ~ 6 V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 20-TSSOP
A: What is the Number-of-Elements of the product?
Q: The Number-of-Elements of the product is 2.
A: At what frequency does the Logic-Type?
Q: The product Logic-Type is Buffer/Line Driver, Non-Inverting.
A: What is the Number-of-Bits-per-Element of the product?
Q: The Number-of-Bits-per-Element of the product is 4.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 500 mW.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Non-Inverting.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 6 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 2 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is HC.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 130 ns at 2 V 26 ns at 4.5 V 22 ns at 6 V.
A: At what frequency does the High-Level-Output-Current?
Q: The product High-Level-Output-Current is - 7.8 mA.
A: What is the Low-Level-Output-Current of the product?
Q: The Low-Level-Output-Current of the product is 7.8 mA.
A: At what frequency does the Number-of-Input-Lines?
Q: The product Number-of-Input-Lines is 8 Input.
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 3 Output.
