MCP1661T-E/OT

MCP1661T-E/OT Overview

Product belongs to the - series. Type: Boost Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SOT-23-5 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up. Supplier device package: SOT-23-5 Number-of-Outputs: 1 Topology: Boost feedback This product features 'Frequency-Switching' at 500kHz for optimal performance. The Positive. Minimum fixed output voltage is 2.4V . The value of No is included as a product attribute. The minimum input voltage is 2.4V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 32 V 250 uA is 92 nA. Input Voltage Range: 3.3 V Maximum Input Voltage: 5.5 V Output current: 200 mA Switching frequency is 500 kHz The product's 2.4 V is 5.1 V. Load regulation is 0.5 %. Minimum supply voltage is 2.4 V

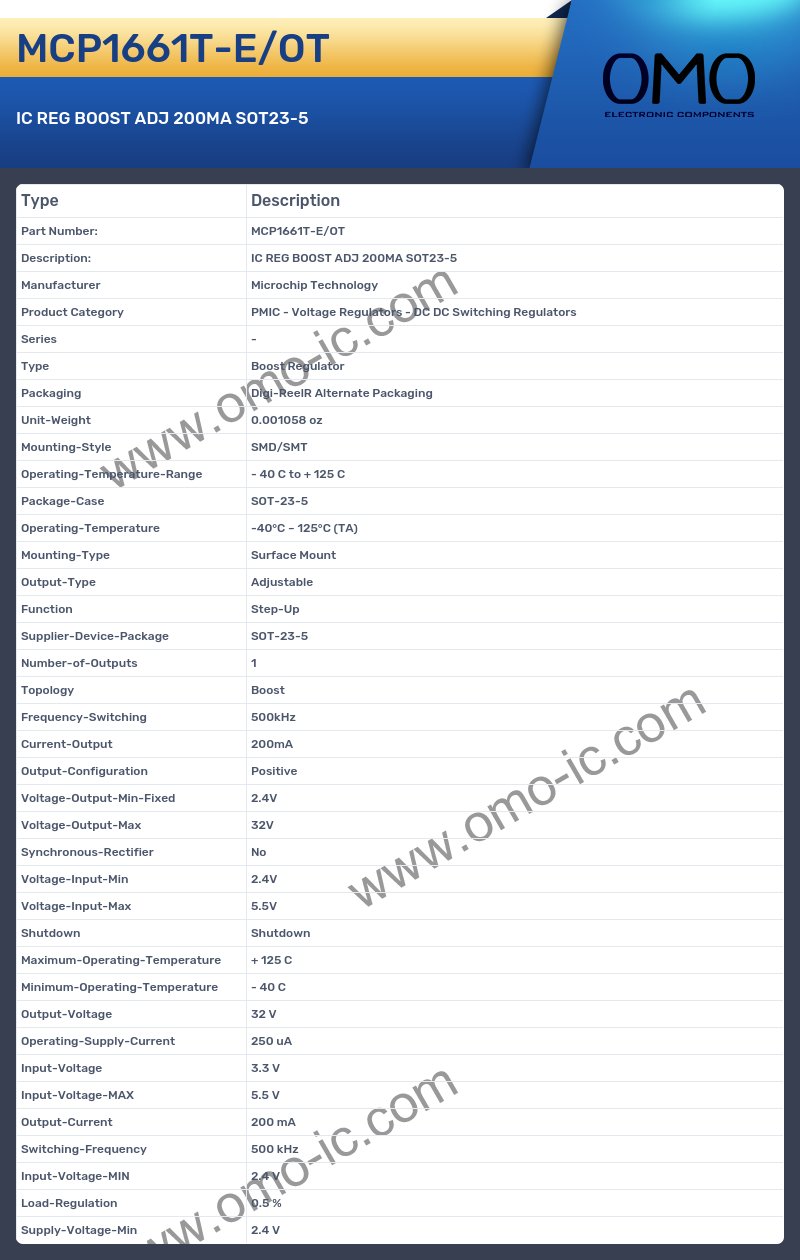

MCP1661T-E/OT Image

MCP1661T-E/OT Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Type Boost Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up
• Supplier-Device-Package SOT-23-5
• Number-of-Outputs 1
• Topology Boost
• Frequency-Switching 500kHz
• Current-Output 200mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 2.4V
• Voltage-Output-Max 32V
• Synchronous-Rectifier No
• Voltage-Input-Min 2.4V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 32 V
• Operating-Supply-Current 250 uA
• Input-Voltage 3.3 V
• Input-Voltage-MAX 5.5 V
• Output-Current 200 mA
• Switching-Frequency 500 kHz
• Input-Voltage-MIN 2.4 V
• Load-Regulation 0.5 %
• Supply-Voltage-Min 2.4 V
