MCP6541-I/MS

MCP6541-I/MS Overview

Product belongs to the - series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, Push-Pull, Rail-to-Rail, TTL Supplier device package: 8-MSOP Voltage supply range: 1.6 V ~ 5.5 V 1 element 1μA maximum quiescent current. Maximum propagation delay: 8μs Hysteresis value of 6.5mV

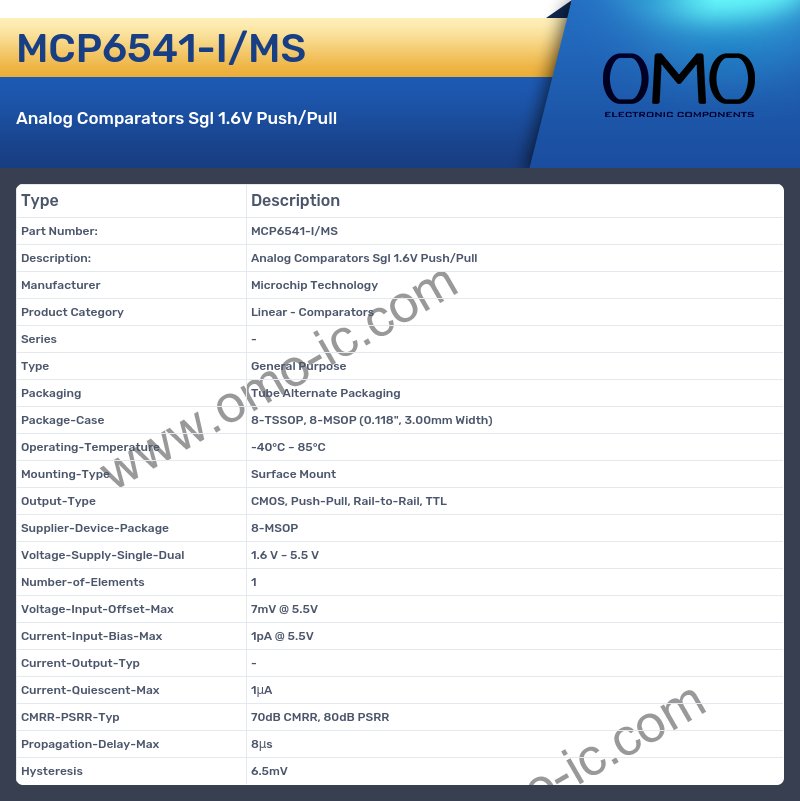

MCP6541-I/MS Image

MCP6541-I/MS Specifications

• Manufacturer Microchip Technology
• Product Category Linear - Comparators
• Series -
• Type General Purpose
• Packaging Tube Alternate Packaging
• Package-Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull, Rail-to-Rail, TTL
• Supplier-Device-Package 8-MSOP
• Voltage-Supply-Single-Dual 1.6 V ~ 5.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 7mV @ 5.5V
• Current-Input-Bias-Max 1pA @ 5.5V
• Current-Output-Typ -
• Current-Quiescent-Max 1μA
• CMRR-PSRR-Typ 70dB CMRR, 80dB PSRR
• Propagation-Delay-Max 8μs
• Hysteresis 6.5mV

MCP6541-I/MS FAQ

• A: What is the Series of the product?

  Q: The Series of the product is -.

• A: What is the Type of the product?

  Q: The Type of the product is General Purpose.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Tube Alternate Packaging.

• A: Is the cutoff frequency of the product Package-Case?

  Q: Yes, the product's Package-Case is indeed 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

• A: Is the cutoff frequency of the product Operating-Temperature?

  Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C

• A: What is the Mounting-Type of the product?

  Q: The Mounting-Type of the product is Surface Mount.

• A: What is the Output-Type of the product?

  Q: The Output-Type of the product is CMOS, Push-Pull, Rail-to-Rail, TTL.

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 8-MSOP.

• A: What is the Voltage-Supply-Single-Dual of the product?

  Q: The Voltage-Supply-Single-Dual of the product is 1.6 V ~ 5.5 V.

• A: Is the cutoff frequency of the product Number-of-Elements?

  Q: Yes, the product's Number-of-Elements is indeed 1

• A: Is the cutoff frequency of the product Current-Quiescent-Max?

  Q: Yes, the product's Current-Quiescent-Max is indeed 1μA

• A: Is the cutoff frequency of the product Propagation-Delay-Max?

  Q: Yes, the product's Propagation-Delay-Max is indeed 8μs

• A: Is the cutoff frequency of the product Hysteresis?

  Q: Yes, the product's Hysteresis is indeed 6.5mV
