| Mfr. #: | MJD44H11T4 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Bipolar Transistors - BJT NPN Gen Pur Switch |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | MJD44H11T4 Datasheet |
Product belongs to the MJD44H11T4 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount mounting type Supplier device package: D-Pak Configuration Single Transistor type: NPN Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 40 @ 4A, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1V @ 400mA, 8A Power-off control: 20 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 80 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1 V The 80 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 8 A This product is capable of handling a 8 A continuous collector current. Minimum hfe for DC collector-base gain is 60.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

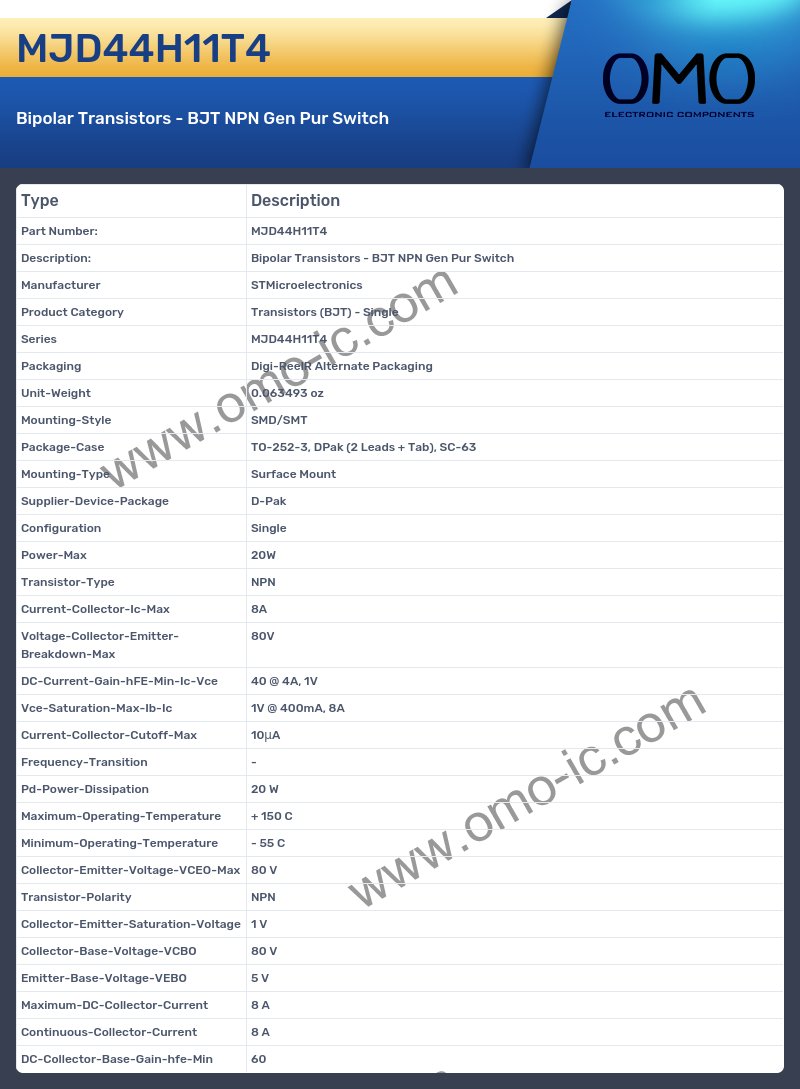

MJD44H11T4 Specifications
