MSP430F2272IDA

MSP430F2272IDA Overview

Product belongs to the MSP430F2xx series. This product is categorized as MCU Tube Alternate Packaging is the packaging method for this product Weight of 0.007189 oz SMD/SMT Mounting-Style Trade name: MSP430. TSSOP-38 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 38-TSSOP This product has 32 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH I2C, IrDA, LIN, SCI, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. USCI (UART IrDA LIN SPI and I2C SPI) interface type Processor Core: MSP430 This product is powered by the 2 Series Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 16 MHz Number of ADC Channels: 12 This product has 32 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

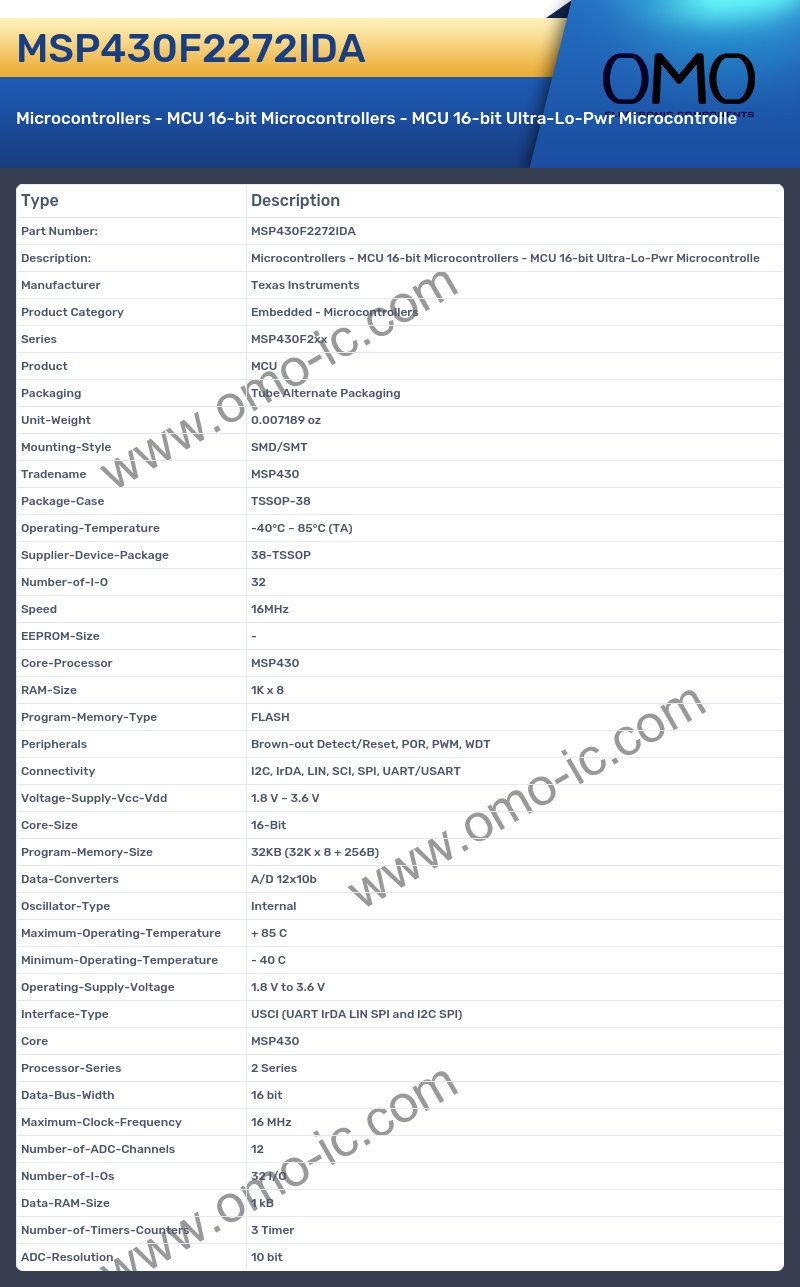

MSP430F2272IDA Image

MSP430F2272IDA Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series MSP430F2xx
• Product MCU
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007189 oz
• Mounting-Style SMD/SMT
• Tradename MSP430
• Package-Case TSSOP-38
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 38-TSSOP
• Number-of-I-O 32
• Speed 16MHz
• EEPROM-Size -
• Core-Processor MSP430
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SCI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 32KB (32K x 8 + 256B)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type USCI (UART IrDA LIN SPI and I2C SPI)
• Core MSP430
• Processor-Series 2 Series
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 32 I/O
• Data-RAM-Size 1 kB
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit
