| Mfr. #: | NE5534D |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Operational Amplifiers - Op Amps Lw Nois Hi Spd Audio |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | NE5534D Datasheet |
Product belongs to the NE5534 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Bipolar is the technology used. Number of channels: 1 Channel The amplifier is of Low Noise Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 4 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 10 V SOIC-8 Input bias current of 1.5 uA The 4 mV. 38 mA The CMRR-Common-Mode-Rejection-Ratio is 100 dB. The 3.5 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 2.5 pA/sqrt Hz. Maximum dual supply voltage: +/- 15 V Minimum dual supply voltage of +/- 5 V

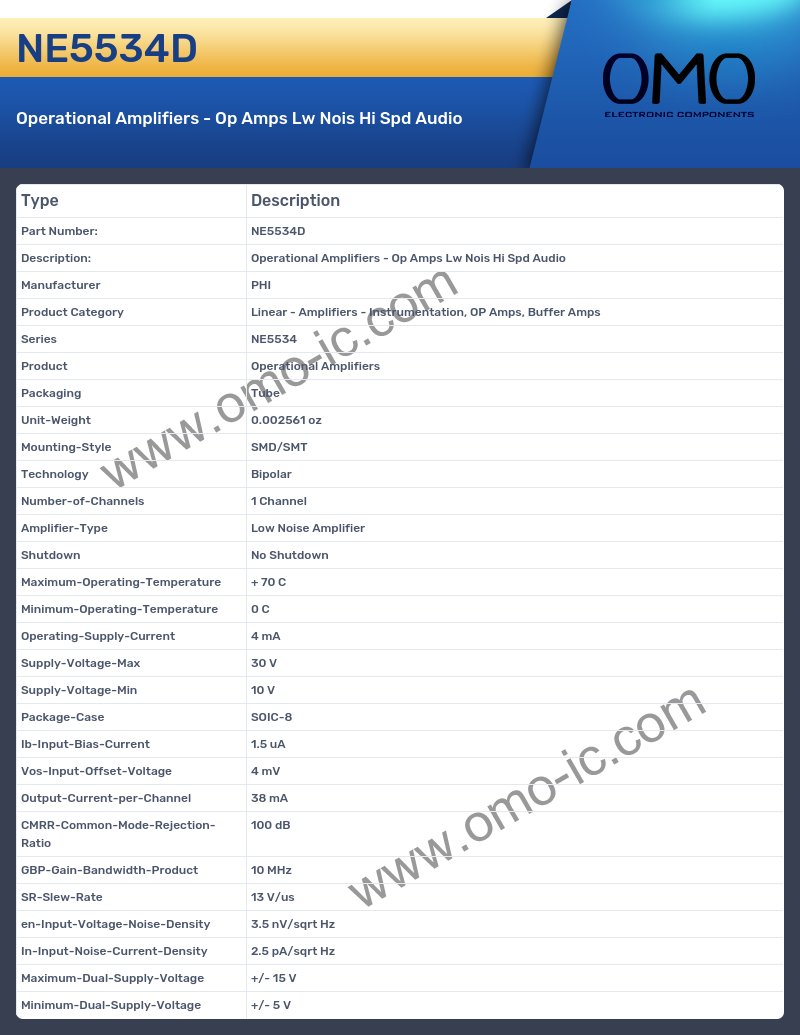

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NE5534D Specifications
A: What is the Series of the product?
Q: The Series of the product is NE5534.
A: At what frequency does the Product?
Q: The product Product is Operational Amplifiers.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.002561 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Technology?
Q: The product Technology is Bipolar.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: Is the cutoff frequency of the product Amplifier-Type?
Q: Yes, the product's Amplifier-Type is indeed Low Noise Amplifier
A: Is the cutoff frequency of the product Shutdown?
Q: Yes, the product's Shutdown is indeed No Shutdown
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 4 mA
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 30 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 10 V.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-8.
A: At what frequency does the Ib-Input-Bias-Current?
Q: The product Ib-Input-Bias-Current is 1.5 uA.
A: What is the Vos-Input-Offset-Voltage of the product?
Q: The Vos-Input-Offset-Voltage of the product is 4 mV.
A: Is the cutoff frequency of the product Output-Current-per-Channel?
Q: Yes, the product's Output-Current-per-Channel is indeed 38 mA
A: Is the cutoff frequency of the product CMRR-Common-Mode-Rejection-Ratio?
Q: Yes, the product's CMRR-Common-Mode-Rejection-Ratio is indeed 100 dB
A: At what frequency does the en-Input-Voltage-Noise-Density?
Q: The product en-Input-Voltage-Noise-Density is 3.5 nV/sqrt Hz.
A: At what frequency does the In-Input-Noise-Current-Density?
Q: The product In-Input-Noise-Current-Density is 2.5 pA/sqrt Hz.
A: What is the Maximum-Dual-Supply-Voltage of the product?
Q: The Maximum-Dual-Supply-Voltage of the product is +/- 15 V.
A: At what frequency does the Minimum-Dual-Supply-Voltage?
Q: The product Minimum-Dual-Supply-Voltage is +/- 5 V.
