OPA549TG3 Overview

RoHS compliant with Details The amplifier type is High Output Current Amplifier. Input bias current of Through Hole Package type is TO-220-11 Maximum supply voltage of 60 V The 8 A for reliable performance. Single 1 Channel for basic signal processing This product has a 9 V/us for fast and accurate signal processing. CMRR is 80 dB Input Bias Current is 500 nA The 5 mV is 3 millivolts. The minimum supply voltage is 8 V Current consumption is 35 mA . Maximum Operating Temperature: + 125 C - 40 C minimum operating temperature Power-off control: Shutdown Product belongs to the OPA549 series. Tube is the packaging method for this product The 70 nV/sqrt Hz is 5.2 nV/sqrt Hz. The 1 pA/sqrt Hz is 5.2 nV/sqrt Hz. Max Dual Supply Voltage: +/- 30 V The +/- 4 V for this product is 5 V. This product is categorized as Operational Amplifiers 92.04 dB PSRR Vcm - Common Mode Voltage: Negative Rail - 0.1 V to Positive Rail - 3 V

OPA549TG3 Image

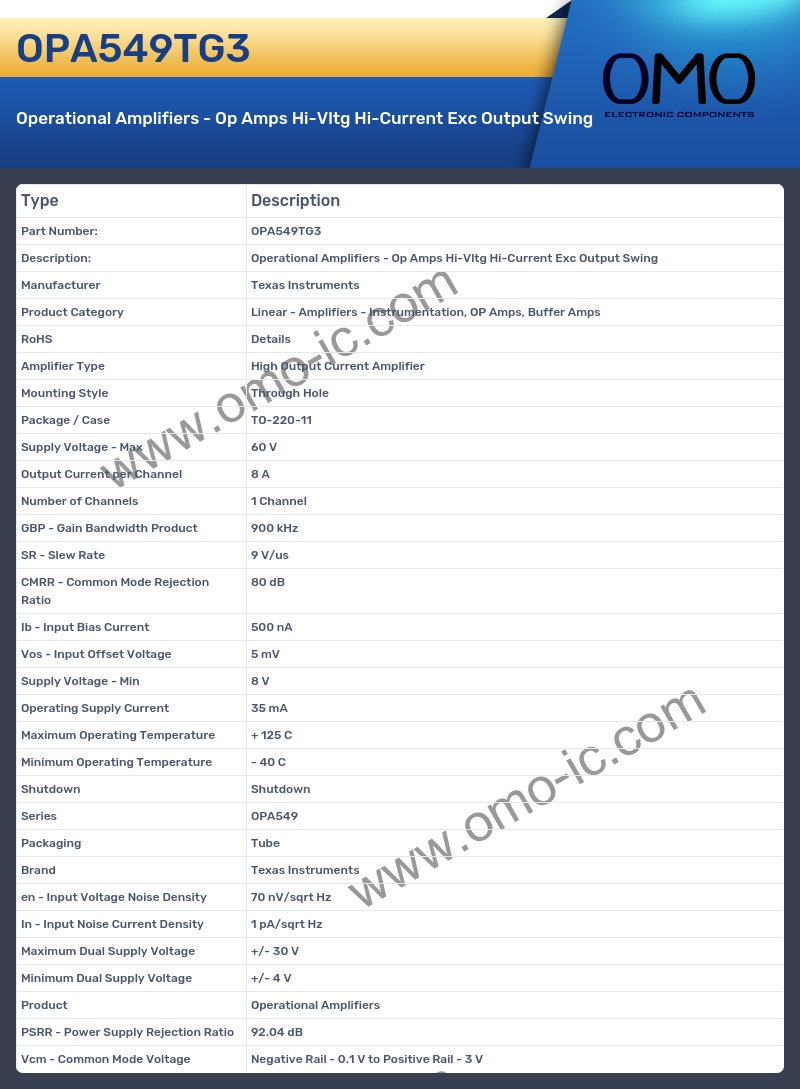

OPA549TG3 Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• RoHS Details
• Amplifier Type High Output Current Amplifier
• Mounting Style Through Hole
• Package / Case TO-220-11
• Supply Voltage - Max 60 V
• Output Current per Channel 8 A
• Number of Channels 1 Channel
• GBP - Gain Bandwidth Product 900 kHz
• SR - Slew Rate 9 V/us
• CMRR - Common Mode Rejection Ratio 80 dB
• Ib - Input Bias Current 500 nA
• Vos - Input Offset Voltage 5 mV
• Supply Voltage - Min 8 V
• Operating Supply Current 35 mA
• Maximum Operating Temperature + 125 C
• Minimum Operating Temperature - 40 C
• Shutdown Shutdown
• Series OPA549
• Packaging Tube
• Brand Texas Instruments
• en - Input Voltage Noise Density 70 nV/sqrt Hz
• In - Input Noise Current Density 1 pA/sqrt Hz
• Maximum Dual Supply Voltage +/- 30 V
• Minimum Dual Supply Voltage +/- 4 V
• Product Operational Amplifiers
• PSRR - Power Supply Rejection Ratio 92.04 dB
• Vcm - Common Mode Voltage Negative Rail - 0.1 V to Positive Rail - 3 V
