PIC16F1946-E/PT

PIC16F1946-E/PT Overview

Product belongs to the PICR XLP 16F series. Tube is the packaging method for this product 64-TQFP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 64-TQFP (10x10) This product has 54 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 5.5 V 8-Bit architecture Internal oscillator type

PIC16F1946-E/PT Image

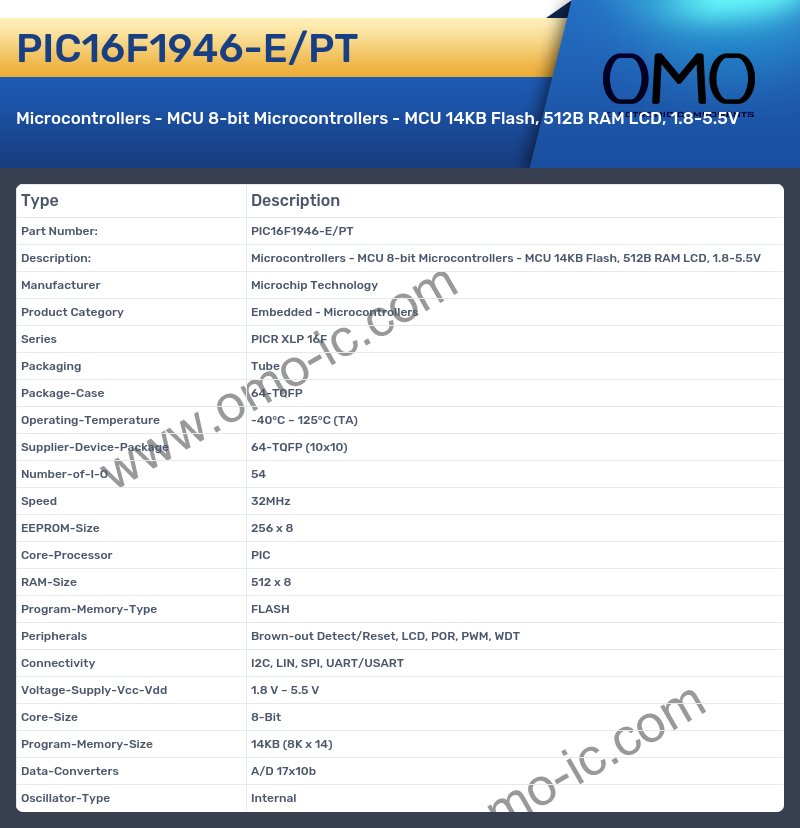

PIC16F1946-E/PT Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Packaging Tube
• Package-Case 64-TQFP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 64-TQFP (10x10)
• Number-of-I-O 54
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor PIC
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 17x10b
• Oscillator-Type Internal
