PIC16F84-04I/SO

PIC16F84-04I/SO Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style SOIC-18 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 18-SOIC This product has 13 I/O ports for versatile connectivity. Operating frequency: 4MHz Program memory type: FLASH - interface Supply Voltage: 4 V ~ 6 V 8-Bit architecture External oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Processor Core: PIC This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 6 V Minimum supply voltage is 2 V Maximum clock frequency of 4 MHz This product has 13 I/O connections. This product has a 68 B data RAM size, providing ample storage for complex applications. This product features 1 Timer number of timers and counters. This product features a high-precision No ADC, ensuring accurate data conversion.

PIC16F84-04I/SO Image

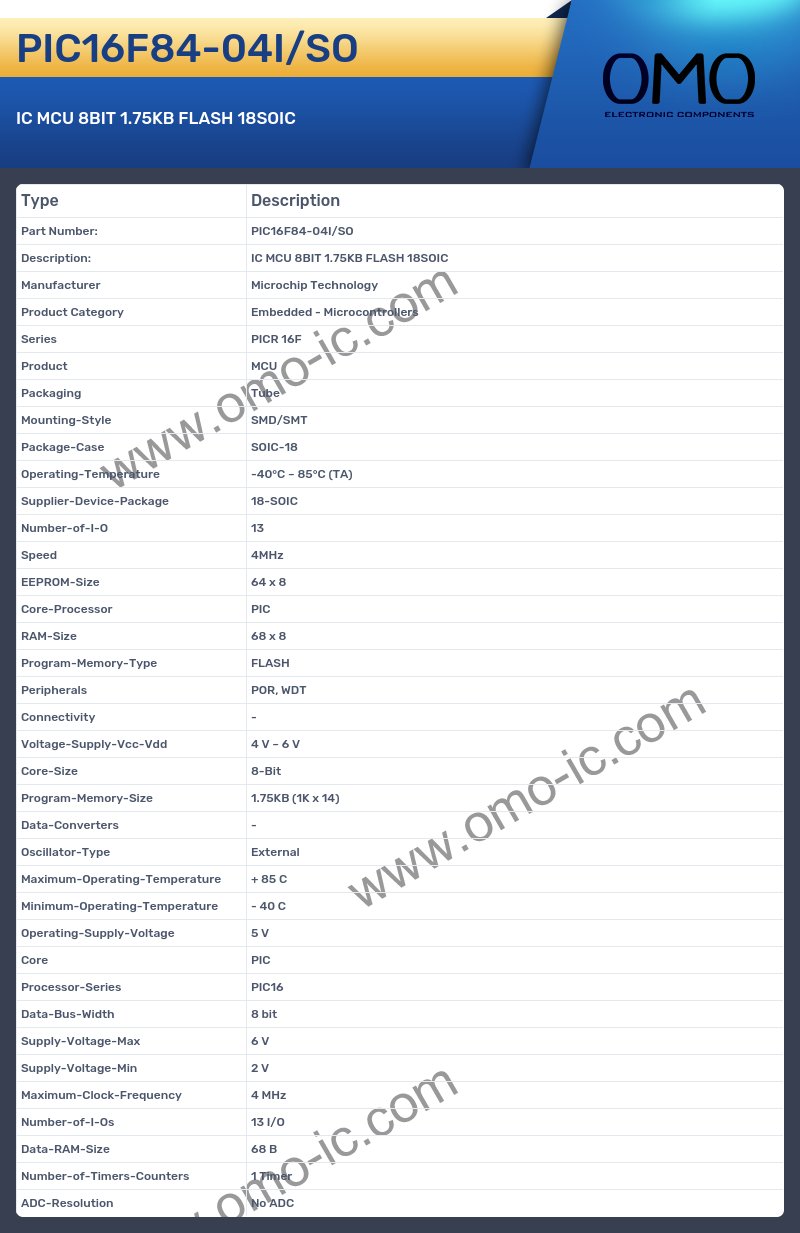

PIC16F84-04I/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case SOIC-18
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 18-SOIC
• Number-of-I-O 13
• Speed 4MHz
• EEPROM-Size 64 x 8
• Core-Processor PIC
• RAM-Size 68 x 8
• Program-Memory-Type FLASH
• Peripherals POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 4 V ~ 6 V
• Core-Size 8-Bit
• Program-Memory-Size 1.75KB (1K x 14)
• Data-Converters -
• Oscillator-Type External
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Core PIC
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Maximum-Clock-Frequency 4 MHz
• Number-of-I-Os 13 I/O
• Data-RAM-Size 68 B
• Number-of-Timers-Counters 1 Timer
• ADC-Resolution No ADC
