PT5804C Overview

Product belongs to the Excalibur PT5800 series. Type: Non-Isolated PoL Module Tray is the packaging method for this product 18-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 18A of 50mA for efficient power management. The minimum input voltage is 4.5V. The 5.5V. This product is designed with - voltage isolation for maximum safety and reliability. 1.5V output voltage

PT5804C Image

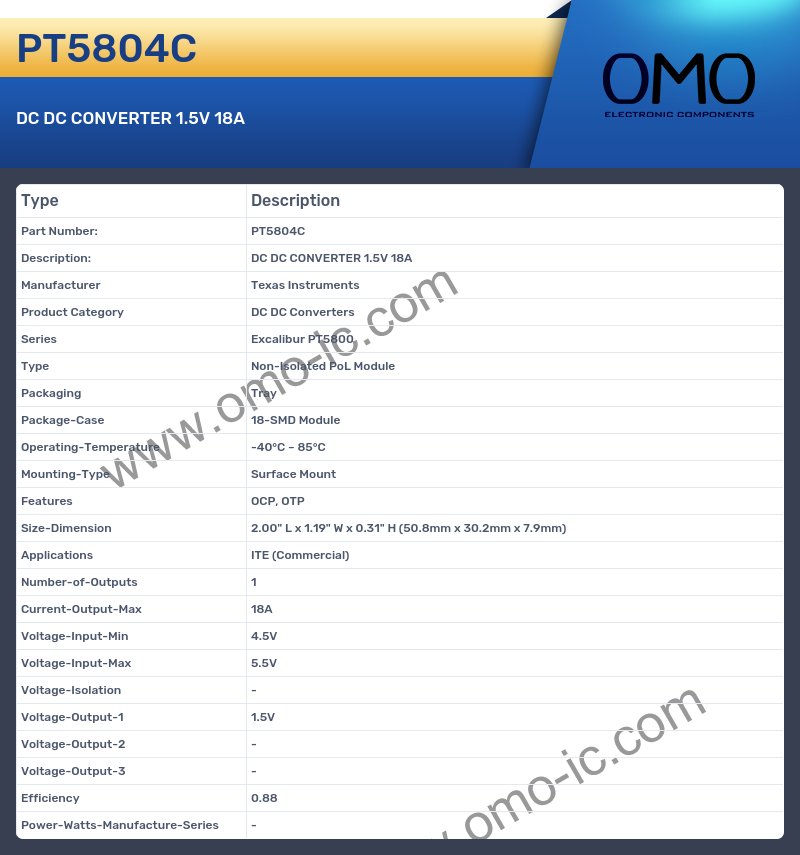

PT5804C Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT5800
• Type Non-Isolated PoL Module
• Packaging Tray
• Package-Case 18-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features OCP, OTP
• Size-Dimension 2.00" L x 1.19" W x 0.31" H (50.8mm x 30.2mm x 7.9mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 18A
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 5.5V
• Voltage-Isolation -
• Voltage-Output-1 1.5V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.88
• Power-Watts-Manufacture-Series -
