PTB48540AAZ

PTB48540AAZ Overview

Product belongs to the PTB48540 series. Type: Isolated PoE Module Tray is the packaging method for this product 13-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 2A of 50mA for efficient power management. The minimum input voltage is 36V. The 57V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 5V output voltage

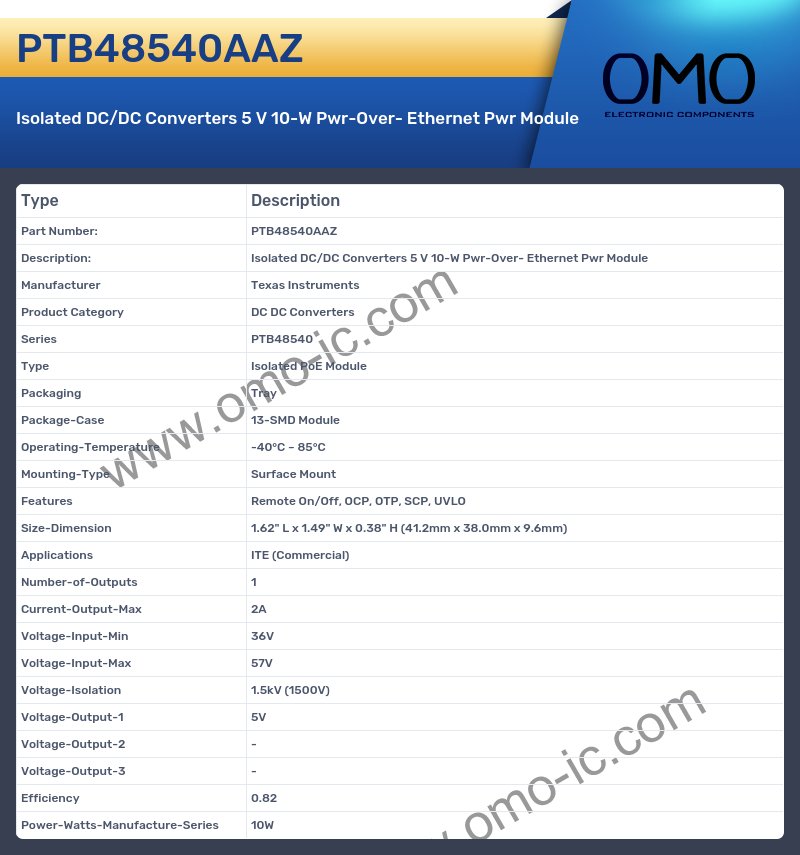

PTB48540AAZ Image

PTB48540AAZ Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTB48540
• Type Isolated PoE Module
• Packaging Tray
• Package-Case 13-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OCP, OTP, SCP, UVLO
• Size-Dimension 1.62" L x 1.49" W x 0.38" H (41.2mm x 38.0mm x 9.6mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 2A
• Voltage-Input-Min 36V
• Voltage-Input-Max 57V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 5V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.82
• Power-Watts-Manufacture-Series 10W

PTB48540AAZ FAQ

• A: What is the Series of the product?

  Q: The Series of the product is PTB48540.

• A: At what frequency does the Type?

  Q: The product Type is Isolated PoE Module.

• A: Is the cutoff frequency of the product Packaging?

  Q: Yes, the product's Packaging is indeed Tray

• A: At what frequency does the Package-Case?

  Q: The product Package-Case is 13-SMD Module.

• A: What is the Operating-Temperature of the product?

  Q: The Operating-Temperature of the product is -40°C ~ 85°C.

• A: At what frequency does the Mounting-Type?

  Q: The product Mounting-Type is Surface Mount.

• A: What is the Applications of the product?

  Q: The Applications of the product is ITE (Commercial).

• A: What is the Number-of-Outputs of the product?

  Q: The Number-of-Outputs of the product is 1.

• A: What is the Current-Output-Max of the product?

  Q: The Current-Output-Max of the product is 2A.

• A: Is the cutoff frequency of the product Voltage-Input-Min?

  Q: Yes, the product's Voltage-Input-Min is indeed 36V

• A: Is the cutoff frequency of the product Voltage-Input-Max?

  Q: Yes, the product's Voltage-Input-Max is indeed 57V

• A: Is the cutoff frequency of the product Voltage-Isolation?

  Q: Yes, the product's Voltage-Isolation is indeed 1.5kV (1500V)

• A: What is the Voltage-Output-1 of the product?

  Q: The Voltage-Output-1 of the product is 5V.
