PTB78520WAS Overview

Product belongs to the PTB78520W series. This product is categorized as Isolated Type: Isolated Module Tray is the packaging method for this product SMD/SMT Mounting-Style 10-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 20A of 50mA for efficient power management. The minimum input voltage is 18V. The 60V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 1.8 ~ 3.6 V output voltage Input Voltage Range: 18 V to 60 V 1.8 V to 3.6 V output voltage for channel 1 Current output of channel 1 is 20 A . The Output-Current-Channel of our product is 10 A. Voltage output range of 1.8 V to 3.6 V SMD Module package-case-size

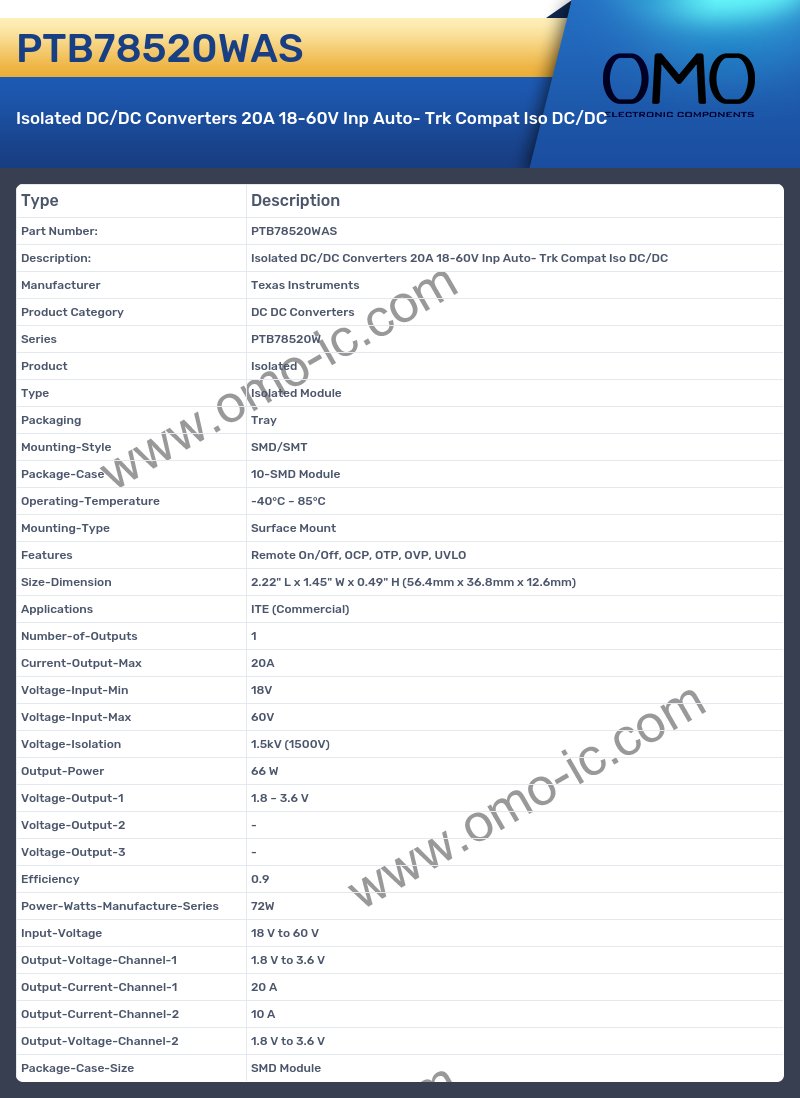

PTB78520WAS Image

PTB78520WAS Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTB78520W
• Product Isolated
• Type Isolated Module
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case 10-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OCP, OTP, OVP, UVLO
• Size-Dimension 2.22" L x 1.45" W x 0.49" H (56.4mm x 36.8mm x 12.6mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 20A
• Voltage-Input-Min 18V
• Voltage-Input-Max 60V
• Voltage-Isolation 1.5kV (1500V)
• Output-Power 66 W
• Voltage-Output-1 1.8 ~ 3.6 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.9
• Power-Watts-Manufacture-Series 72W
• Input-Voltage 18 V to 60 V
• Output-Voltage-Channel-1 1.8 V to 3.6 V
• Output-Current-Channel-1 20 A
• Output-Current-Channel-2 10 A
• Output-Voltage-Channel-2 1.8 V to 3.6 V
• Package-Case-Size SMD Module
