PTH12010WAS Overview

Product belongs to the PTH12010 series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tray is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 10-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 12A of 50mA for efficient power management. The minimum input voltage is 10.8V. The 13.2V. This product is designed with - voltage isolation for maximum safety and reliability. 1.2 ~ 5.5 V output voltage Input Voltage Range: 10.8 V to 13.2 V 5.5 V output voltage for channel 1 Current output of channel 1 is 12 A . Surface Mount Module package-case-size

PTH12010WAS Image

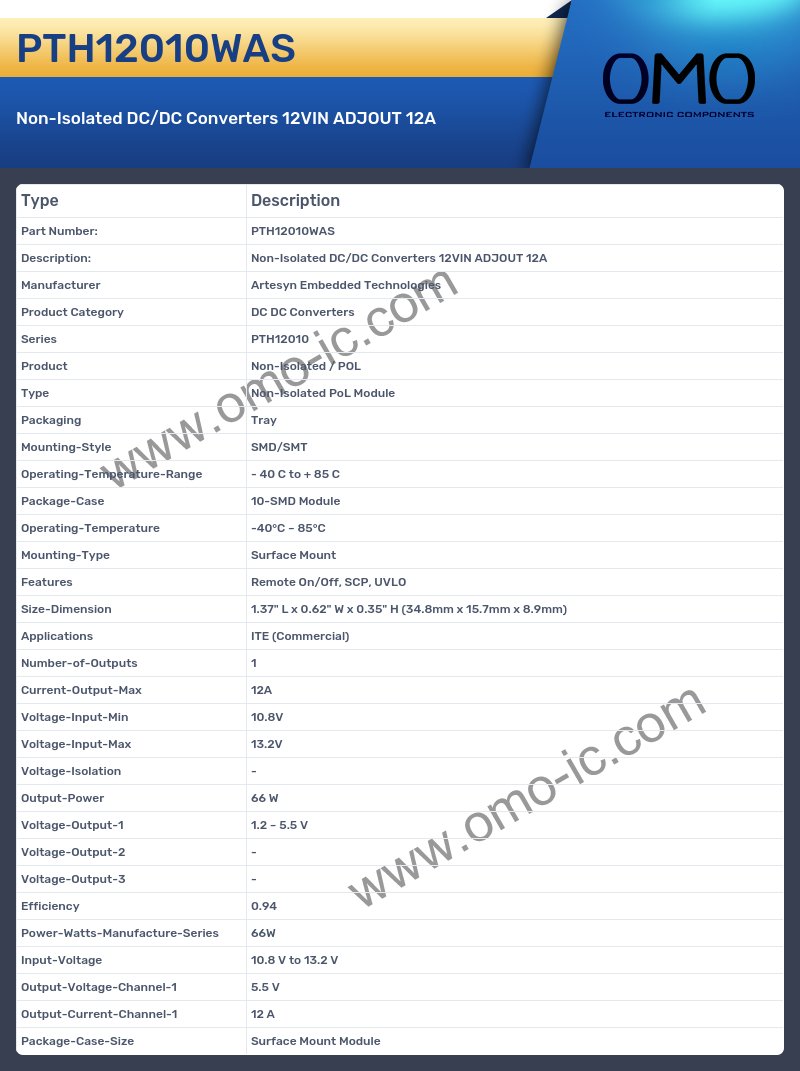

PTH12010WAS Specifications

• Manufacturer Artesyn Embedded Technologies
• Product Category DC DC Converters
• Series PTH12010
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tray
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 10-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, SCP, UVLO
• Size-Dimension 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 12A
• Voltage-Input-Min 10.8V
• Voltage-Input-Max 13.2V
• Voltage-Isolation -
• Output-Power 66 W
• Voltage-Output-1 1.2 ~ 5.5 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.94
• Power-Watts-Manufacture-Series 66W
• Input-Voltage 10.8 V to 13.2 V
• Output-Voltage-Channel-1 5.5 V
• Output-Current-Channel-1 12 A
• Package-Case-Size Surface Mount Module
