REF02APG4

REF02APG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 8-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: 8-PDIP Tolerance of ±0.3% 8 V ~ 40 V voltage input This product has a 1.4mA of 200μA. Series is the reference type. Minimum fixed output voltage is 5V . 15ppm/°C is 30 parts per million per degree Celsius. 4μVp-p of noise in 0#1Hz-to-10Hz range

REF02APG4 Image

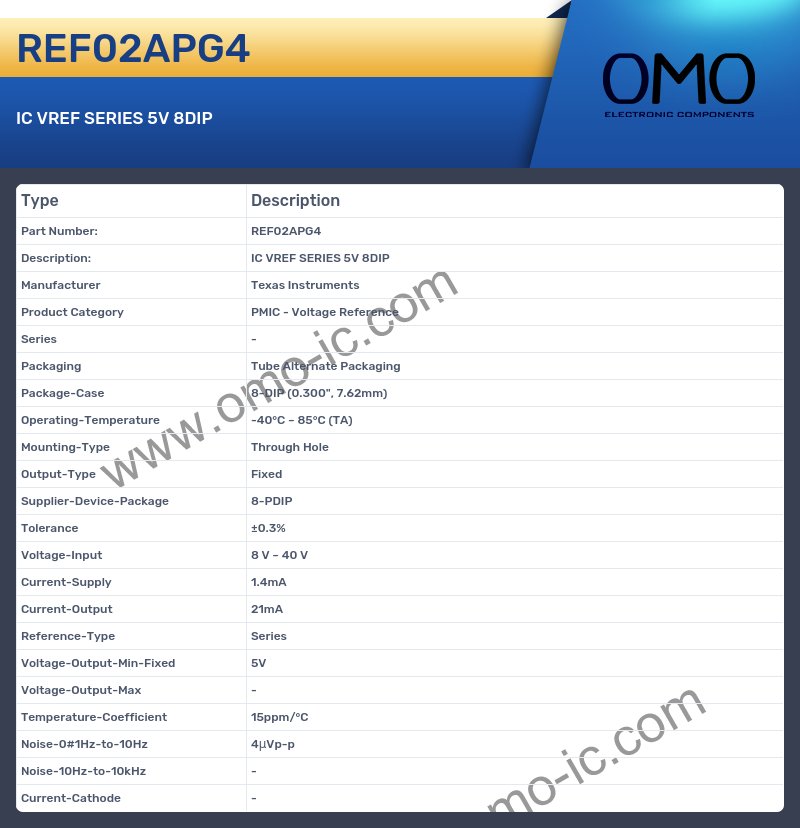

REF02APG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Reference
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 8-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package 8-PDIP
• Tolerance ±0.3%
• Voltage-Input 8 V ~ 40 V
• Current-Supply 1.4mA
• Current-Output 21mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 5V
• Voltage-Output-Max -
• Temperature-Coefficient 15ppm/°C
• Noise-0#1Hz-to-10Hz 4μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
