| Mfr. #: | REF5020AIDR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Voltage References Lo Noise Very Low Drift Prec VLTG REF |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | REF5020AIDR Datasheet |
Product belongs to the REF5020 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±0.1% 2.7 V ~ 18 V voltage input This product has a 1.2mA of 200μA. Series is the reference type. Minimum fixed output voltage is 2.048V . 8ppm/°C is 30 parts per million per degree Celsius. 6μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.048 V 800 uA is 92 nA. Input Voltage Range: 2.7 V to 18 V Initial accuracy: 0.05 % Maximum input voltage of 18 V for Series VREF. Maximum shunt current of 10 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

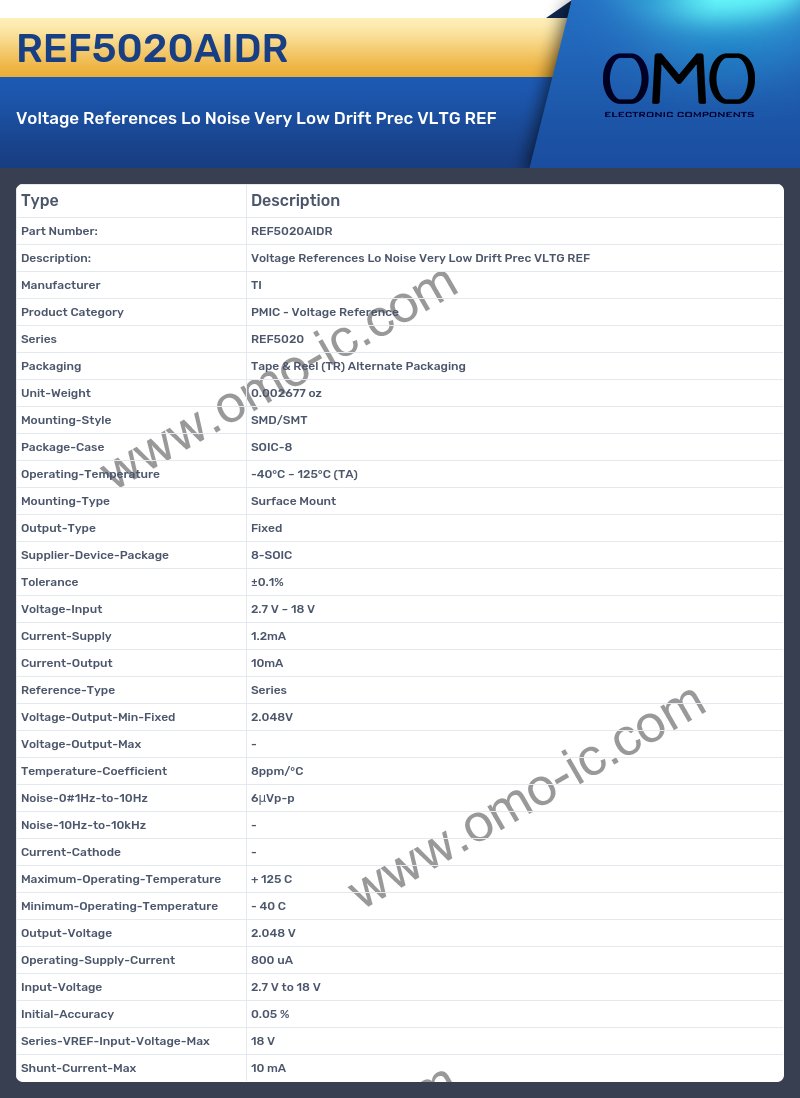

REF5020AIDR Specifications
A: What is the Series of the product?
Q: The Series of the product is REF5020.
A: At what frequency does the Packaging?
Q: The product Packaging is Tape & Reel (TR) Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.002677 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-8
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 125°C (TA).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Fixed.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SOIC
A: Is the cutoff frequency of the product Tolerance?
Q: Yes, the product's Tolerance is indeed ±0.1%
A: What is the Voltage-Input of the product?
Q: The Voltage-Input of the product is 2.7 V ~ 18 V.
A: What is the Current-Supply of the product?
Q: The Current-Supply of the product is 1.2mA.
A: At what frequency does the Reference-Type?
Q: The product Reference-Type is Series.
A: At what frequency does the Voltage-Output-Min-Fixed?
Q: The product Voltage-Output-Min-Fixed is 2.048V.
A: At what frequency does the Temperature-Coefficient?
Q: The product Temperature-Coefficient is 8ppm/°C.
A: At what frequency does the Noise-0#1Hz-to-10Hz?
Q: The product Noise-0#1Hz-to-10Hz is 6μVp-p.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 125 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Output-Voltage?
Q: Yes, the product's Output-Voltage is indeed 2.048 V
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 800 uA
A: Is the cutoff frequency of the product Input-Voltage?
Q: Yes, the product's Input-Voltage is indeed 2.7 V to 18 V
A: Is the cutoff frequency of the product Initial-Accuracy?
Q: Yes, the product's Initial-Accuracy is indeed 0.05 %
A: Is the cutoff frequency of the product Series-VREF-Input-Voltage-Max?
Q: Yes, the product's Series-VREF-Input-Voltage-Max is indeed 18 V
A: At what frequency does the Shunt-Current-Max?
Q: The product Shunt-Current-Max is 10 mA.
