SM15T56AY

SM15T56AY Overview

Product belongs to the Automotive, AEC-Q101, SM15TY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008818 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. DO-214AB, SMC Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: SMC - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 48V. The Voltage-Breakdown-Min is 53.3V. No Power-Line-Protection - Capacitance-Frequency Polarity: Unidirectional

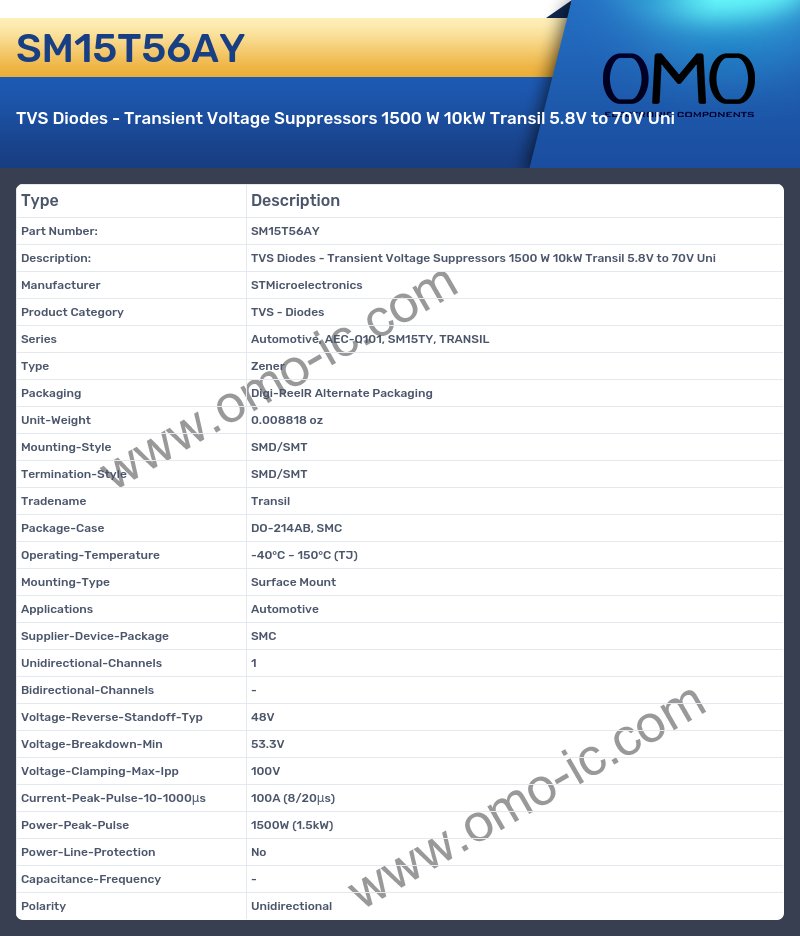

SM15T56AY Image

SM15T56AY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, SM15TY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008818 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case DO-214AB, SMC
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package SMC
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 48V
• Voltage-Breakdown-Min 53.3V
• Voltage-Clamping-Max-Ipp 100V
• Current-Peak-Pulse-10-1000μs 100A (8/20μs)
• Power-Peak-Pulse 1500W (1.5kW)
• Power-Line-Protection No
• Capacitance-Frequency -
• Polarity Unidirectional
