SMM4F13A-TR

SMM4F13A-TR Overview

Product belongs to the SMM4F, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 55 C to + 175 C operating temperature range for diverse applications The Height of the product is 0.85 mm. 2.95 mm length of the product The 1.9 mm is at most 7.6 mm. DO-222AA Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO222-AA - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 13V. The Voltage-Breakdown-Min is 14.3V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 400 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Breakdown-Voltage: 14.3 V Clamping-Voltage: 27.2 V 85 A Peak Surge Current 13 V working voltage Polarity: Unidirectional

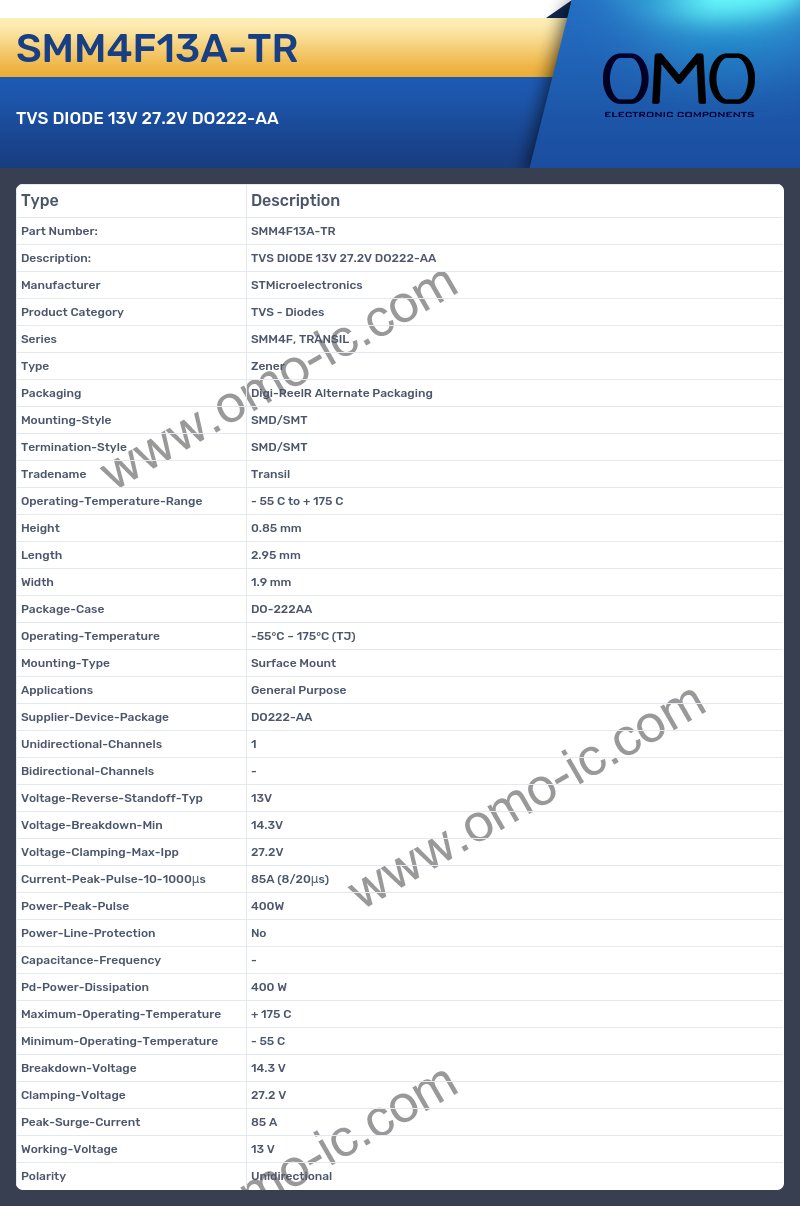

SMM4F13A-TR Image

SMM4F13A-TR Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SMM4F, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 55 C to + 175 C
• Height 0.85 mm
• Length 2.95 mm
• Width 1.9 mm
• Package-Case DO-222AA
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package DO222-AA
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 13V
• Voltage-Breakdown-Min 14.3V
• Voltage-Clamping-Max-Ipp 27.2V
• Current-Peak-Pulse-10-1000μs 85A (8/20μs)
• Power-Peak-Pulse 400W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 400 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 14.3 V
• Clamping-Voltage 27.2 V
• Peak-Surge-Current 85 A
• Working-Voltage 13 V
• Polarity Unidirectional
