SN10503DR

SN10503DR Overview

Product belongs to the SN10503 series. This product is categorized as Operational Amplifiers Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004706 oz SMD/SMT Mounting-Style SOIC-14 Surface Mount mounting type Output-Type: Rail-to-Rail Versatile Voltage Feedback applications for maximum usability Number of channels: 3 Channel Supplier device package: 14-SOIC 3 is 8. Voltage supply range: 2.7 V ~ 16 V, ±1.35 V ~ 8 V This product has a 14mA of 200μA. The 170MHz The 900 V/μs. Current-Output-Channel is 100mA Power-off control: 1500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 45 mA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 2.7 V Input bias current of 3 uA The 25 mV. The 62 dB. The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 13 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 100 dB voltage gain

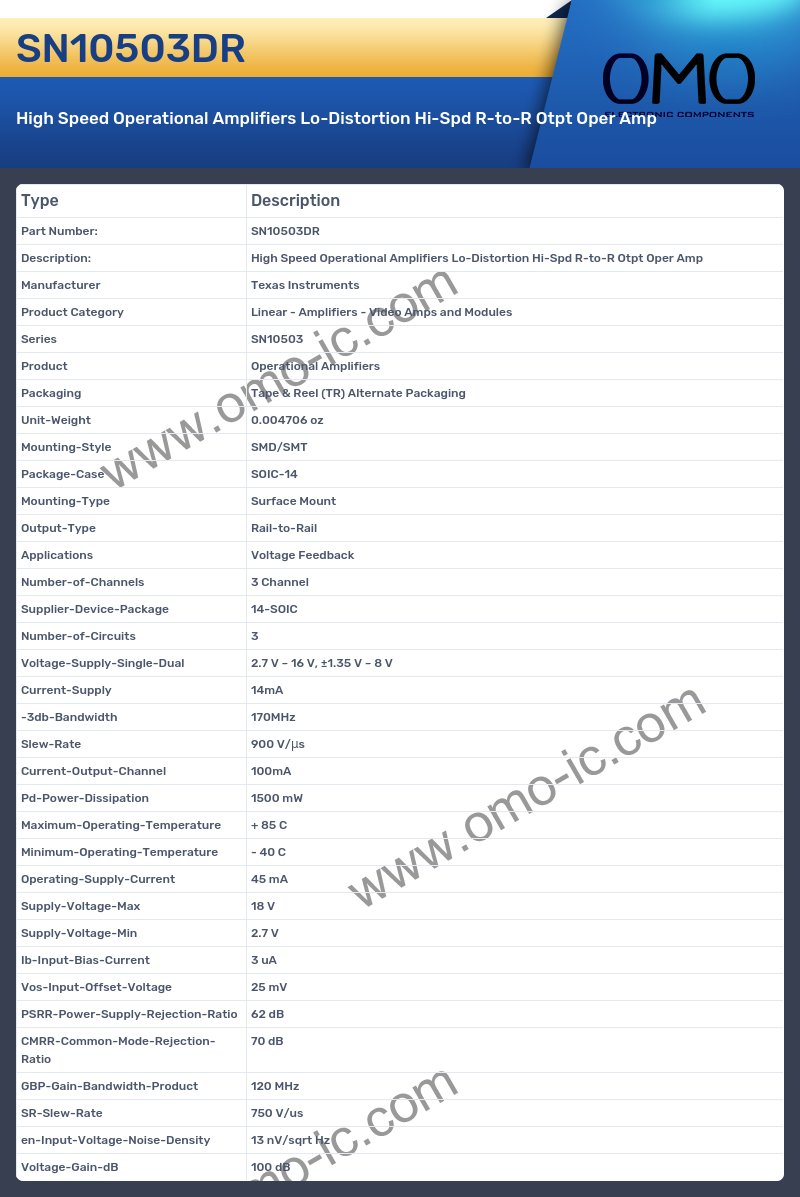

SN10503DR Image

SN10503DR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series SN10503
• Product Operational Amplifiers
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004706 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Mounting-Type Surface Mount
• Output-Type Rail-to-Rail
• Applications Voltage Feedback
• Number-of-Channels 3 Channel
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 3
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V, ±1.35 V ~ 8 V
• Current-Supply 14mA
• -3db-Bandwidth 170MHz
• Slew-Rate 900 V/μs
• Current-Output-Channel 100mA
• Pd-Power-Dissipation 1500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 45 mA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 2.7 V
• Ib-Input-Bias-Current 3 uA
• Vos-Input-Offset-Voltage 25 mV
• PSRR-Power-Supply-Rejection-Ratio 62 dB
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 120 MHz
• SR-Slew-Rate 750 V/us
• en-Input-Voltage-Noise-Density 13 nV/sqrt Hz
• Voltage-Gain-dB 100 dB
