SN65LVDS047D

SN65LVDS047D Overview

Product belongs to the 65LVDS series. Type: Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.005471 oz SMD/SMT Mounting-Style SOIC-16 The LVTTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: LVDS Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 16-SOIC This product has a 4/0 number of drivers and receivers. Power-off control: 950 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 26 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Drivers: 4 Driver 1.8 ns is 23 microseconds.

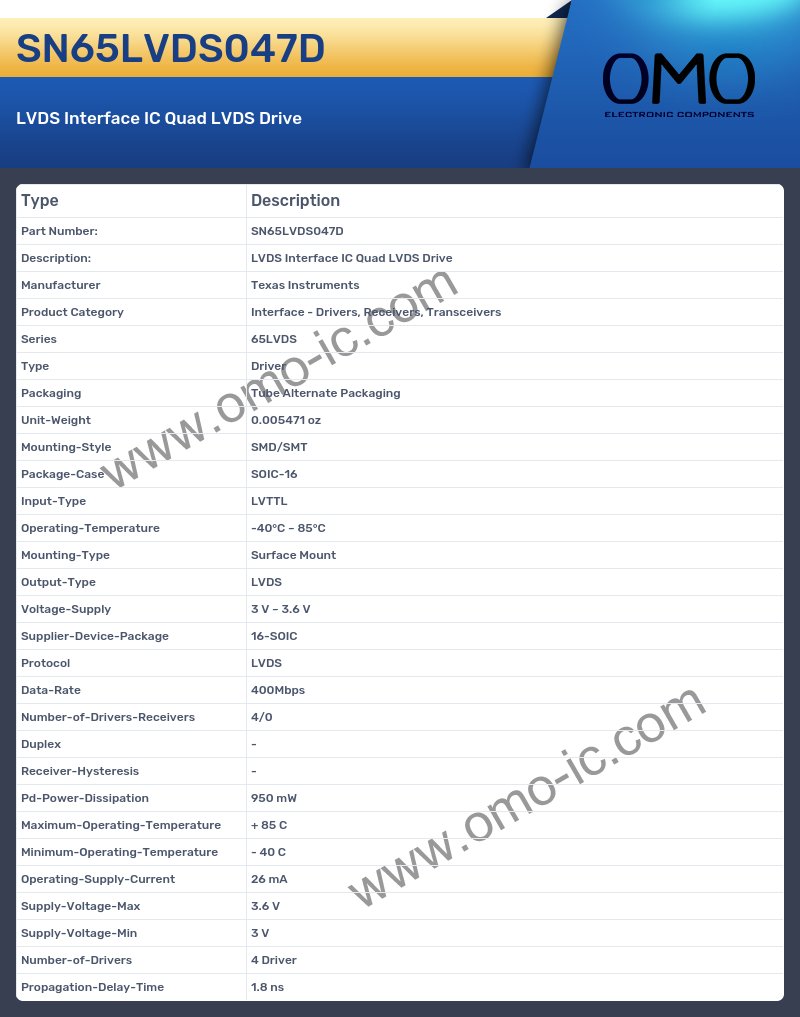

SN65LVDS047D Image

SN65LVDS047D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series 65LVDS
• Type Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005471 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type LVTTL
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type LVDS
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 16-SOIC
• Protocol LVDS
• Data-Rate 400Mbps
• Number-of-Drivers-Receivers 4/0
• Duplex -
• Receiver-Hysteresis -
• Pd-Power-Dissipation 950 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 26 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 4 Driver
• Propagation-Delay-Time 1.8 ns
