SN65LVDS2D

SN65LVDS2D Overview

Product belongs to the 65LVDS series. Type: Receiver Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 The LVDS for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: LVTTL Voltage Supply Range: 2.4 V ~ 3.6 V Supplier device package: 8-SOIC This product has a 0/1 number of drivers and receivers. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 8 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 2.4 V The product has 1 Receiver receivers.

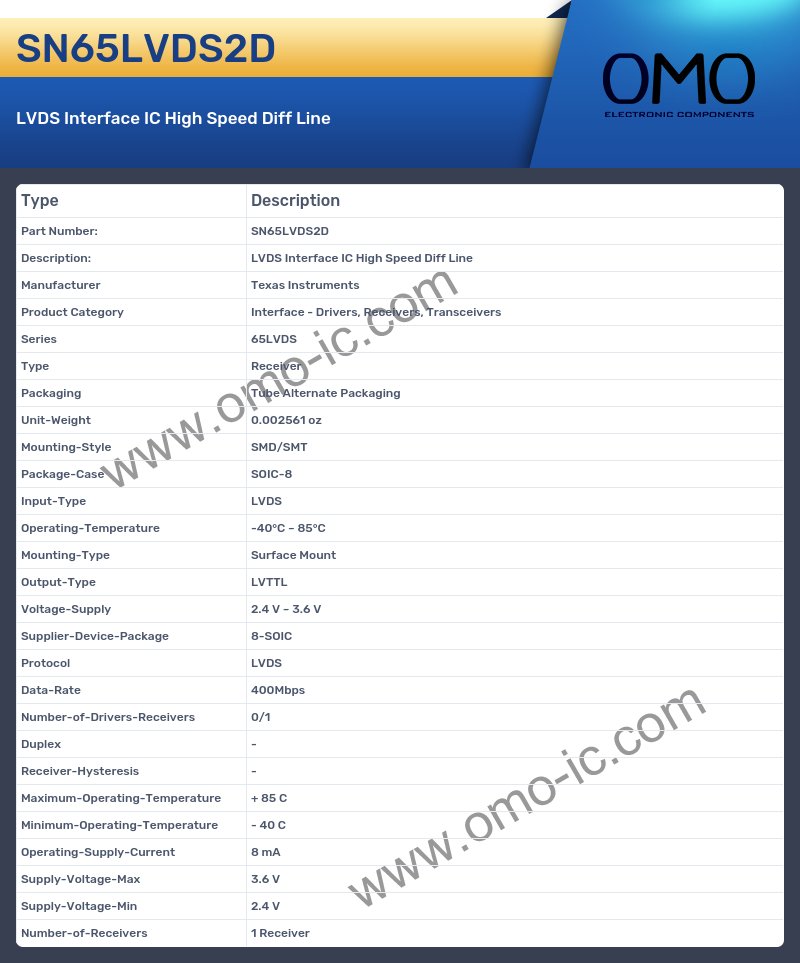

SN65LVDS2D Image

SN65LVDS2D Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series 65LVDS
• Type Receiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type LVDS
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type LVTTL
• Voltage-Supply 2.4 V ~ 3.6 V
• Supplier-Device-Package 8-SOIC
• Protocol LVDS
• Data-Rate 400Mbps
• Number-of-Drivers-Receivers 0/1
• Duplex -
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 8 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.4 V
• Number-of-Receivers 1 Receiver
