| Mfr. #: | SN74AC241DBR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Tri-State Octal |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74AC241DBR Datasheet |
Product belongs to the 74AC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 2 V ~ 6 V Supplier device package: 20-SSOP 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 40 uA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2 V AC logic type 9 ns at 3.3 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

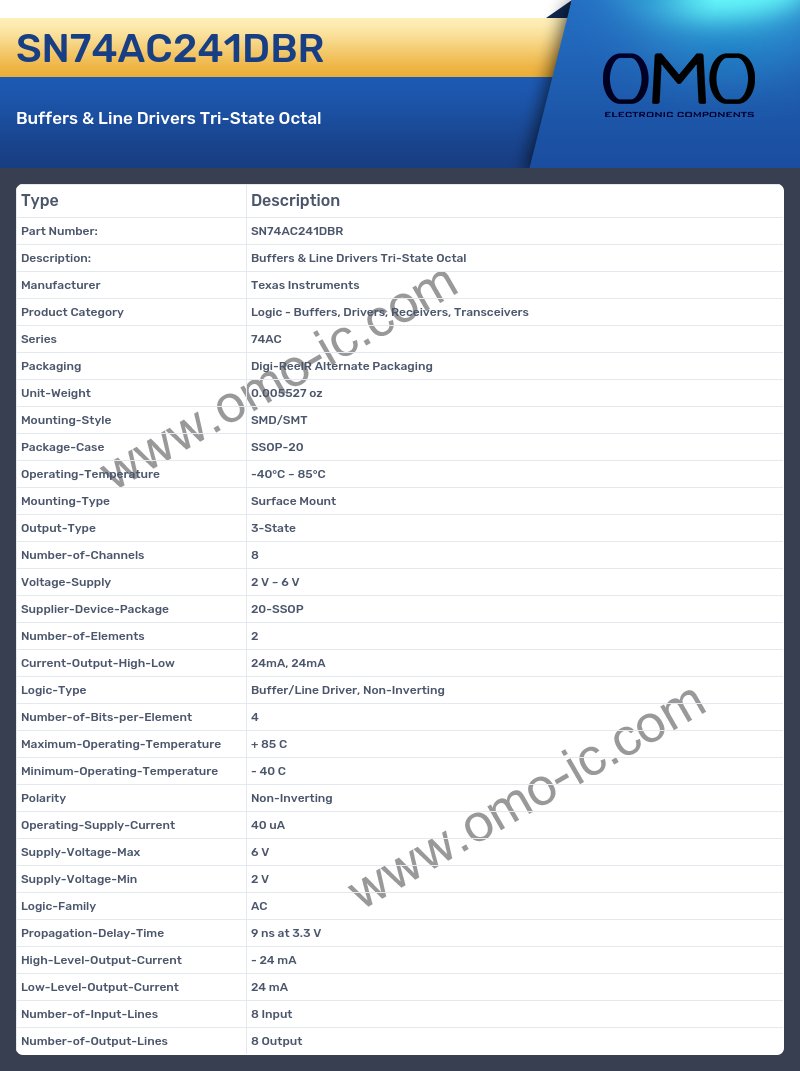

SN74AC241DBR Specifications
