| Mfr. #: | SN74ACT241DW |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Tri-State Octal |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74ACT241DW Datasheet |
Product belongs to the 74ACT series. Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 2 element Buffer/Line Driver, Non-Inverting logic type 4 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 40 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 8.5 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

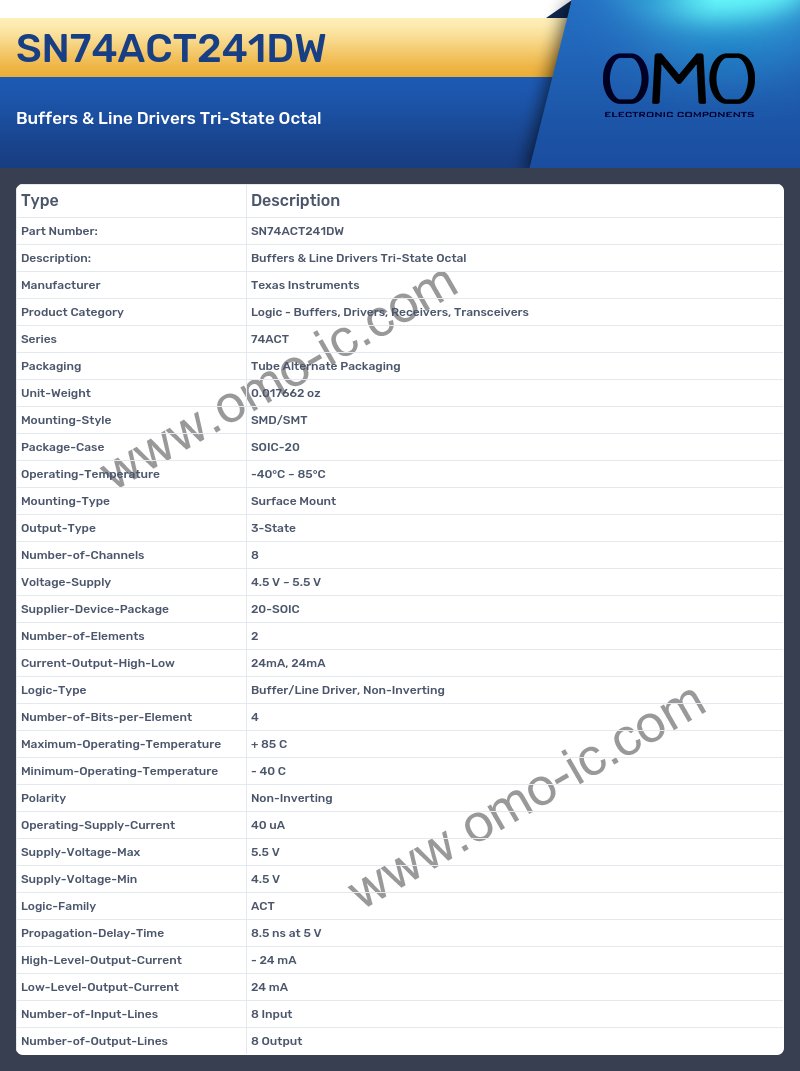

SN74ACT241DW Specifications
