SN74ALS133D

SN74ALS133D Overview

Product belongs to the 74ALS series. This product is categorized as Single-Function Gate Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-SOIC 1 is 8. 1 Gate is the number of gates included in this product. - maximum quiescent current. NAND Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type 25 ns is 23 microseconds. High-Level-Output-Current of - 8 mA 0.4 mA low-level output current Number-of-Input-Lines: 13 Input Number-of-Output-Lines: 1 Output NAND logic function

SN74ALS133D Image

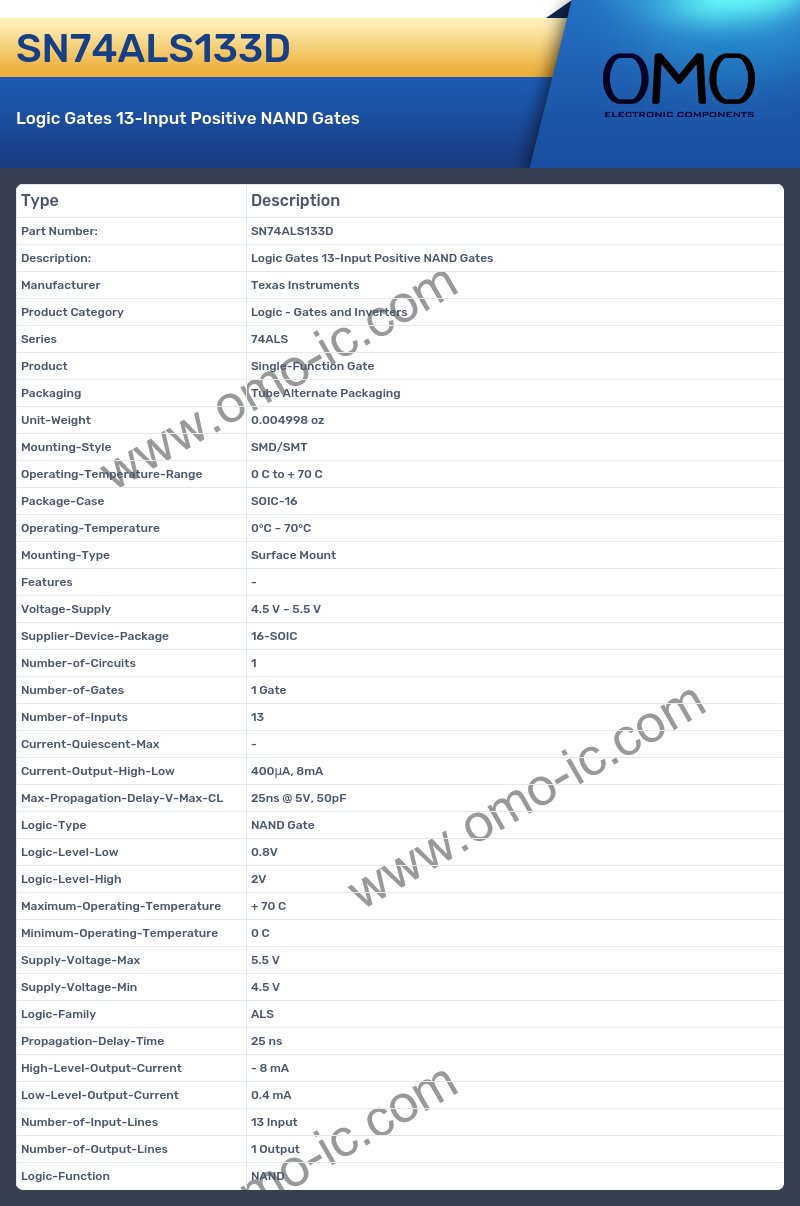

SN74ALS133D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74ALS
• Product Single-Function Gate
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 1
• Number-of-Gates 1 Gate
• Number-of-Inputs 13
• Current-Quiescent-Max -
• Current-Output-High-Low 400μA, 8mA
• Max-Propagation-Delay-V-Max-CL 25ns @ 5V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ALS
• Propagation-Delay-Time 25 ns
• High-Level-Output-Current - 8 mA
• Low-Level-Output-Current 0.4 mA
• Number-of-Input-Lines 13 Input
• Number-of-Output-Lines 1 Output
• Logic-Function NAND
