| Mfr. #: | SN74ALS541DBR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Octal Buff/Line Drvr W/3-State Otpt |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74ALS541DBR Datasheet |
Product belongs to the 74ALS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SSOP 1 element Buffer/Line Driver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting 25 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type 14 ns at 4.5 V to 5.5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 24 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 8 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

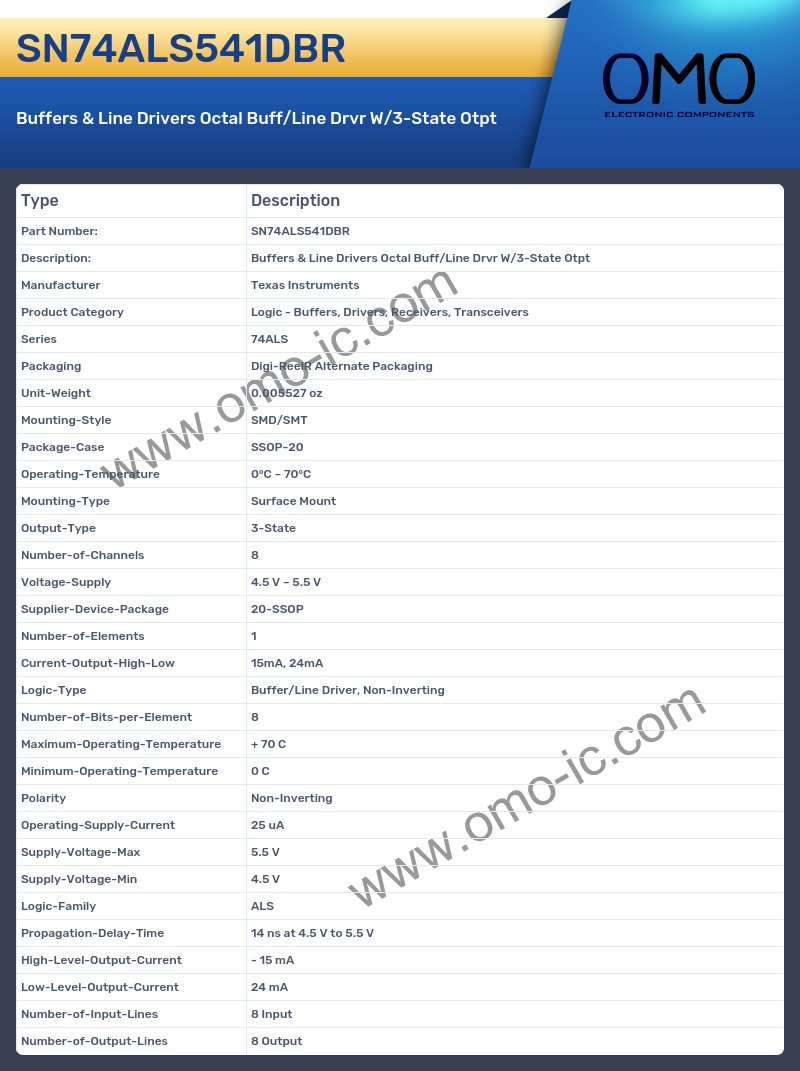

SN74ALS541DBR Specifications
