SN74ALS561ANE4

SN74ALS561ANE4 Overview

Product belongs to the 74ALS series. Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications PDIP-20 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Down directionality Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-PDIP 4 bit bits 1 element Binary Counter logic type 4 bits per element This product's Asynchronous/Synchronous. Synchronous timing The 30MHz count rate. Positive Edge trigger type This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Binary Counter-Type ALS logic type Asynchronous counting-method

SN74ALS561ANE4 Image

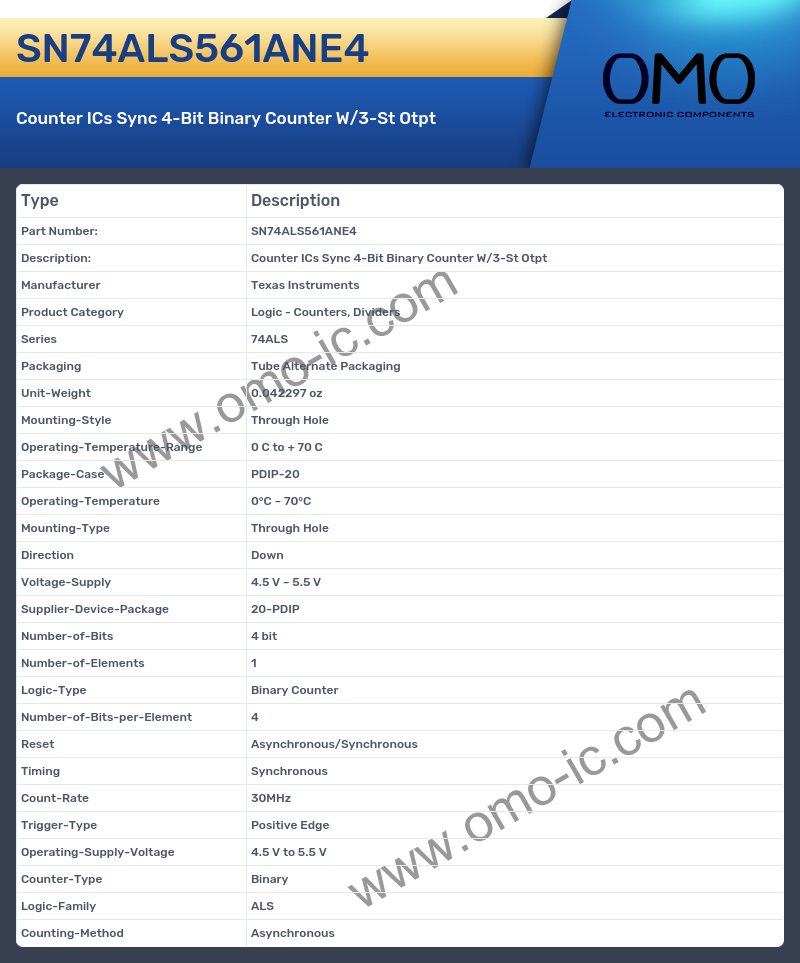

SN74ALS561ANE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 74ALS
• Packaging Tube Alternate Packaging
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case PDIP-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Direction Down
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-PDIP
• Number-of-Bits 4 bit
• Number-of-Elements 1
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 4
• Reset Asynchronous/Synchronous
• Timing Synchronous
• Count-Rate 30MHz
• Trigger-Type Positive Edge
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Counter-Type Binary
• Logic-Family ALS
• Counting-Method Asynchronous
