| Mfr. #: | SN74CBTD3305CD |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Digital Bus Switch ICs Dual FET Bus Switch |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74CBTD3305CD Datasheet |

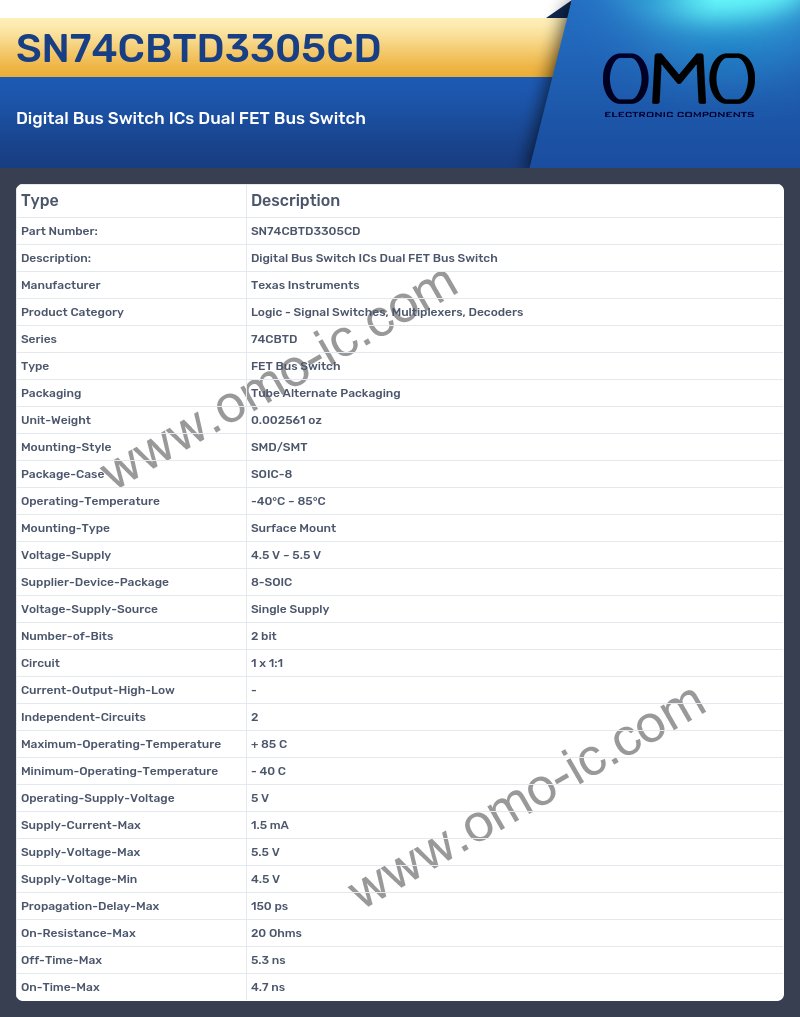

Product belongs to the 74CBTD series. Type: FET Bus Switch Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-SOIC Voltage supply source: Analog and digital Single Supply 2 bit bits Circuit type: 1 x 1:1 2 Independent Circuit Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply current: 1.5 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Maximum propagation delay: 150 ps Max on-resistance of 20 Ohms Maximum off time: 5.3 ns Maximum on-time: 4.7 ns
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
SN74CBTD3305CD Specifications
A: At what frequency does the Series?
Q: The product Series is 74CBTD.
A: What is the Type of the product?
Q: The Type of the product is FET Bus Switch.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002561 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-8.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 4.5 V ~ 5.5 V
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 8-SOIC
A: Is the cutoff frequency of the product Voltage-Supply-Source?
Q: Yes, the product's Voltage-Supply-Source is indeed Single Supply
A: At what frequency does the Number-of-Bits?
Q: The product Number-of-Bits is 2 bit.
A: What is the Circuit of the product?
Q: The Circuit of the product is 1 x 1:1.
A: What is the Independent-Circuits of the product?
Q: The Independent-Circuits of the product is 2.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 5 V.
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 1.5 mA.
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 5.5 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 4.5 V.
A: At what frequency does the Propagation-Delay-Max?
Q: The product Propagation-Delay-Max is 150 ps.
A: At what frequency does the On-Resistance-Max?
Q: The product On-Resistance-Max is 20 Ohms.
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 5.3 ns.
A: At what frequency does the On-Time-Max?
Q: The product On-Time-Max is 4.7 ns.
