SN74F1056D

SN74F1056D Overview

Product belongs to the 74F series. This product is categorized as Schottky Diodes Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style 16-SOIC (0.154", 3.90mm Width) Si is the technology used. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Supplier device package: 16-SOIC 8 bits Configuration Octal Schottky Barrier Diode Bus-Termination Array logic type The -. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Vf-Forward-Voltage: 1.2 V Ir-Reverse-Current is 2 uA. If-Forward-Current is 170 mA. VRRM (7 V) Reverse Voltage The 7 ns TRR-Reverse-Recovery-time

SN74F1056D Image

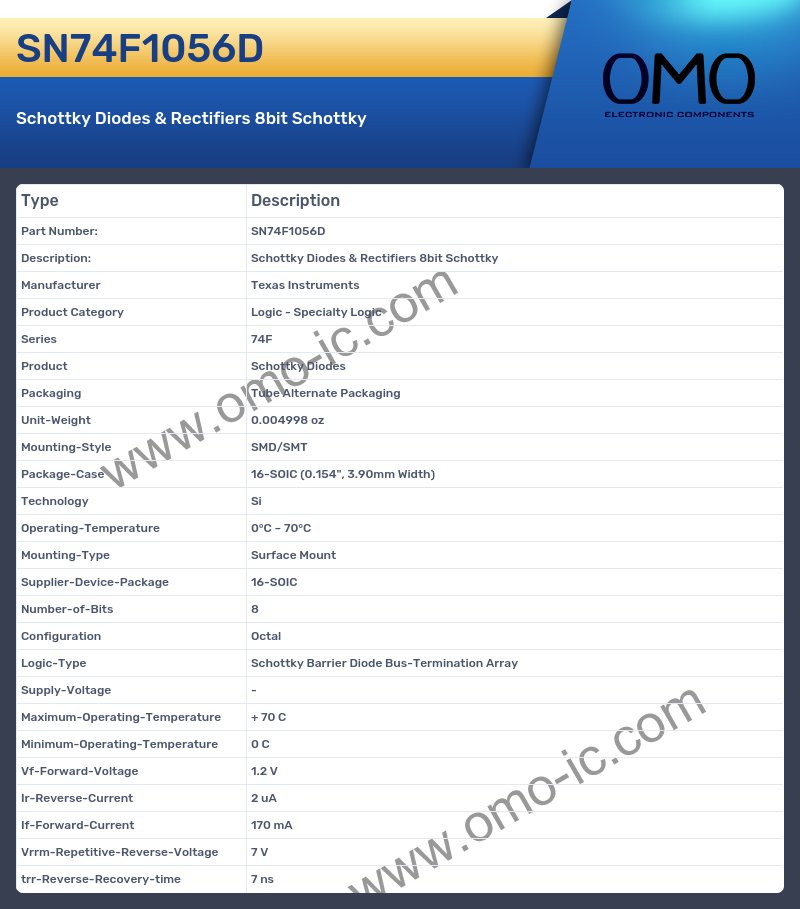

SN74F1056D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Specialty Logic
• Series 74F
• Product Schottky Diodes
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Technology Si
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SOIC
• Number-of-Bits 8
• Configuration Octal
• Logic-Type Schottky Barrier Diode Bus-Termination Array
• Supply-Voltage -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Vf-Forward-Voltage 1.2 V
• Ir-Reverse-Current 2 uA
• If-Forward-Current 170 mA
• Vrrm-Repetitive-Reverse-Voltage 7 V
• trr-Reverse-Recovery-time 7 ns
