| Mfr. #: | SN74F240DW |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Buffers & Line Drivers Octal |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | SN74F240DW Datasheet |
Product belongs to the 74F series. Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 2 element Buffer/Line Driver, Inverting logic type 4 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting 75 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V F logic type 7 ns at 5 V is 23 microseconds. High-Level-Output-Current of - 15 mA 64 mA low-level output current Number-of-Input-Lines: 8 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

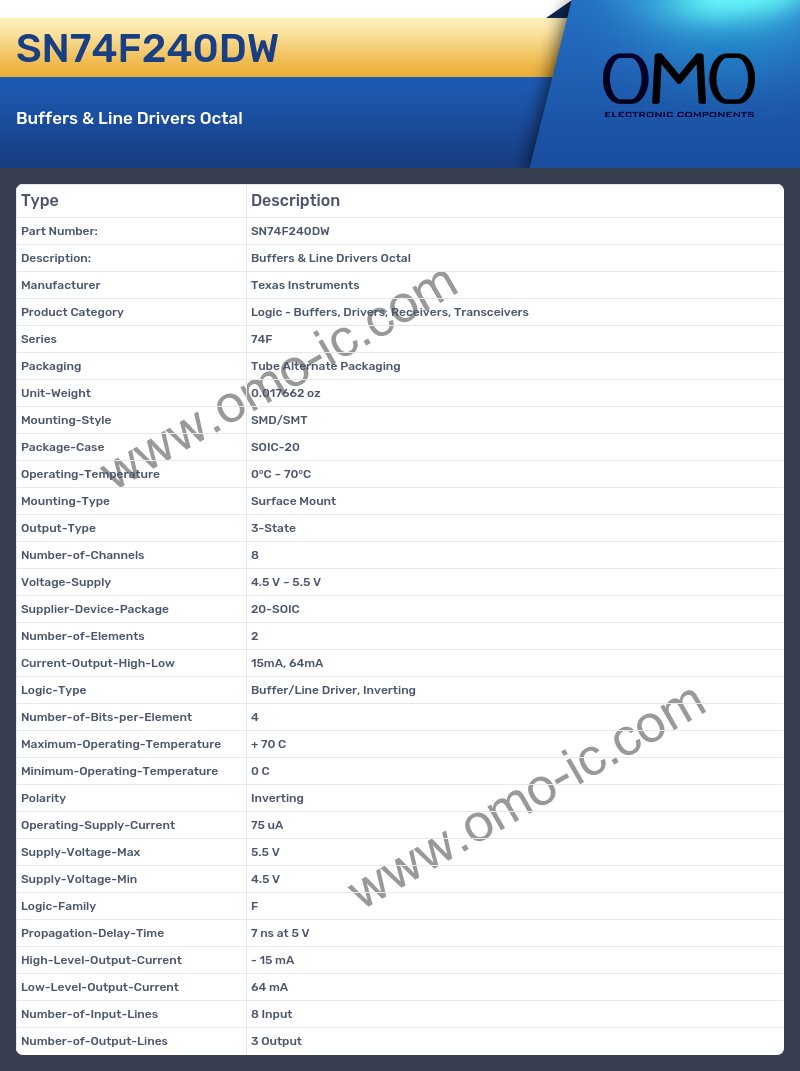

SN74F240DW Specifications
A: At what frequency does the Series?
Q: The product Series is 74F.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube Alternate Packaging
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.017662 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-20
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is 0°C ~ 70°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Output-Type?
Q: The product Output-Type is 3-State.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 8
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 4.5 V ~ 5.5 V
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 20-SOIC.
A: Is the cutoff frequency of the product Number-of-Elements?
Q: Yes, the product's Number-of-Elements is indeed 2
A: Is the cutoff frequency of the product Logic-Type?
Q: Yes, the product's Logic-Type is indeed Buffer/Line Driver, Inverting
A: At what frequency does the Number-of-Bits-per-Element?
Q: The product Number-of-Bits-per-Element is 4.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 70 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is 0 C.
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Inverting
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 75 uA
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 5.5 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 4.5 V.
A: At what frequency does the Logic-Family?
Q: The product Logic-Family is F.
A: At what frequency does the Propagation-Delay-Time?
Q: The product Propagation-Delay-Time is 7 ns at 5 V.
A: What is the High-Level-Output-Current of the product?
Q: The High-Level-Output-Current of the product is - 15 mA.
A: At what frequency does the Low-Level-Output-Current?
Q: The product Low-Level-Output-Current is 64 mA.
A: At what frequency does the Number-of-Input-Lines?
Q: The product Number-of-Input-Lines is 8 Input.
A: What is the Number-of-Output-Lines of the product?
Q: The Number-of-Output-Lines of the product is 3 Output.
