SN74F245DW

SN74F245DW Overview

Product belongs to the 74F series. This product is categorized as Standard Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: 3-State Product function is Tri-State Octal Bus. Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC 8 is 8. 1 element Transceiver, Non-Inverting logic type 8 bits per element Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V F logic type 7 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 15 mA 64 mA low-level output current

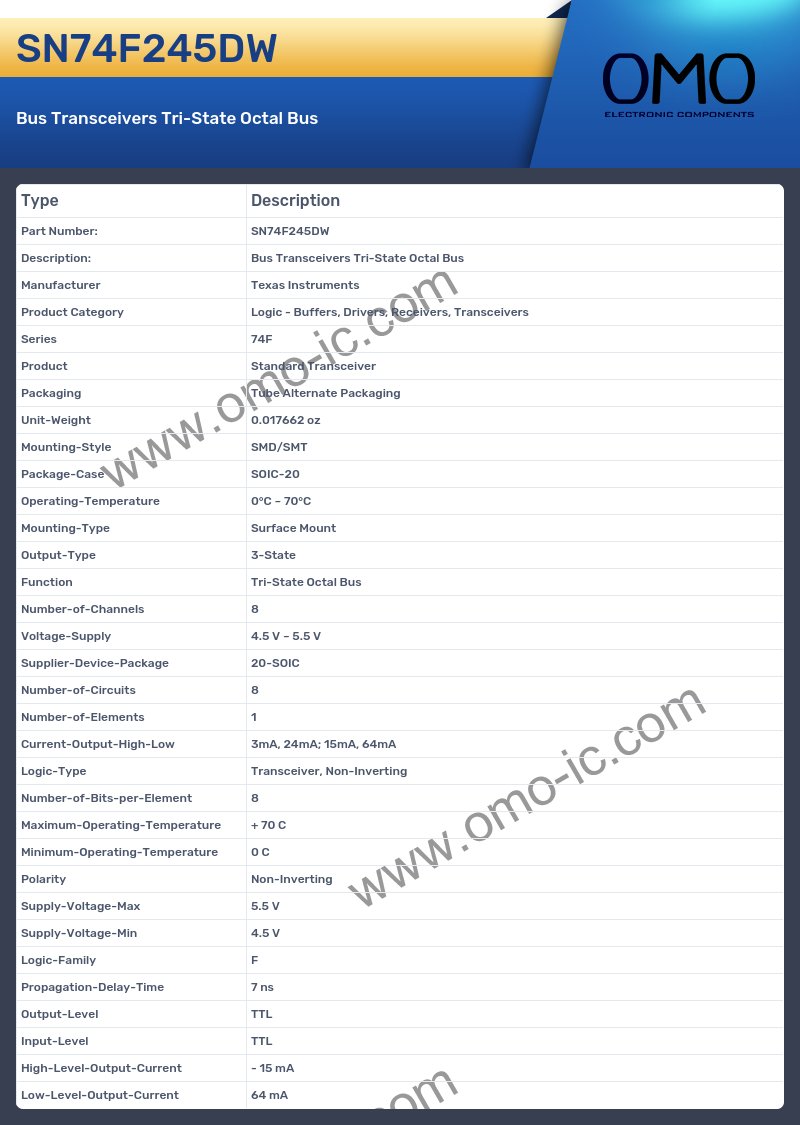

SN74F245DW Image

SN74F245DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74F
• Product Standard Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function Tri-State Octal Bus
• Number-of-Channels 8
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Number-of-Circuits 8
• Number-of-Elements 1
• Current-Output-High-Low 3mA, 24mA; 15mA, 64mA
• Logic-Type Transceiver, Non-Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family F
• Propagation-Delay-Time 7 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 15 mA
• Low-Level-Output-Current 64 mA
