SN74LS122DR

SN74LS122DR Overview

Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC Monostable logic type No. 1 Independent Circuit 28ns Propagation-Delay Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply current: 6 mA Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 56 ns is 23 microseconds. High-Level-Output-Current of - 0.4 mA 8 mA low-level output current 1 Elements-per-Chip

SN74LS122DR Image

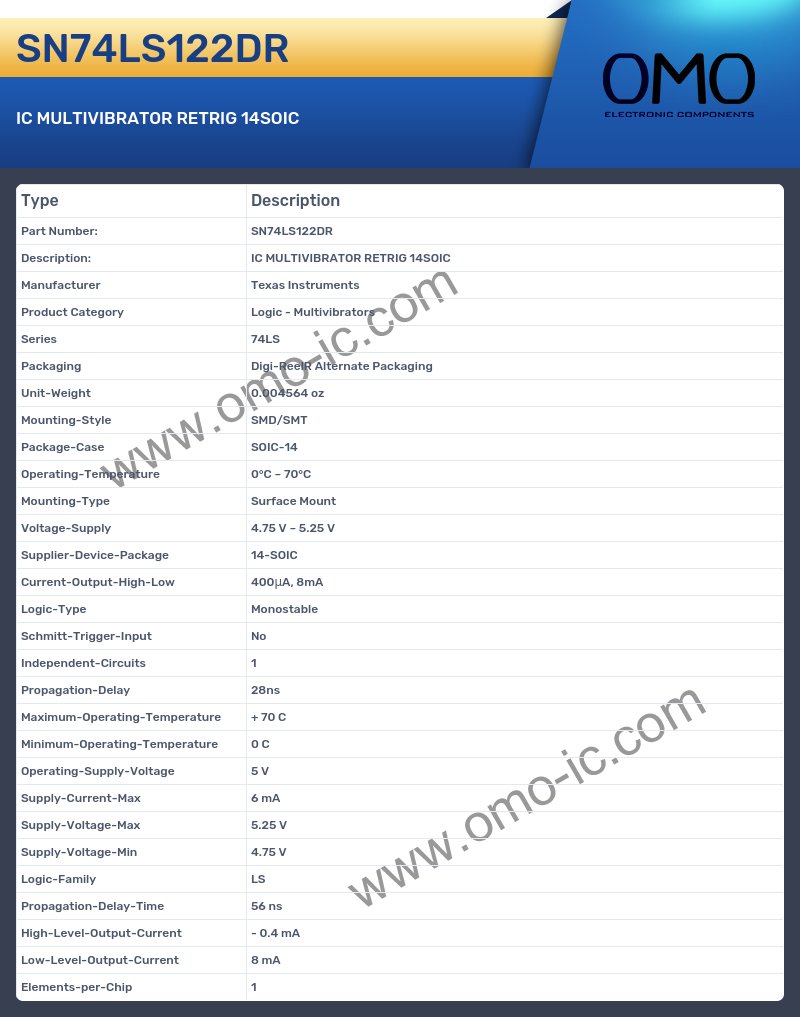

SN74LS122DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Multivibrators
• Series 74LS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Current-Output-High-Low 400μA, 8mA
• Logic-Type Monostable
• Schmitt-Trigger-Input No
• Independent-Circuits 1
• Propagation-Delay 28ns
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Supply-Current-Max 6 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Logic-Family LS
• Propagation-Delay-Time 56 ns
• High-Level-Output-Current - 0.4 mA
• Low-Level-Output-Current 8 mA
• Elements-per-Chip 1
