SN74LS132D

SN74LS132D Overview

Product belongs to the 74LS series. Tube Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 4 is 8. - maximum quiescent current. NAND Gate logic type 0.5V is a Logic-Level-Low; 1.9V is the Logic-Level-High

SN74LS132D Image

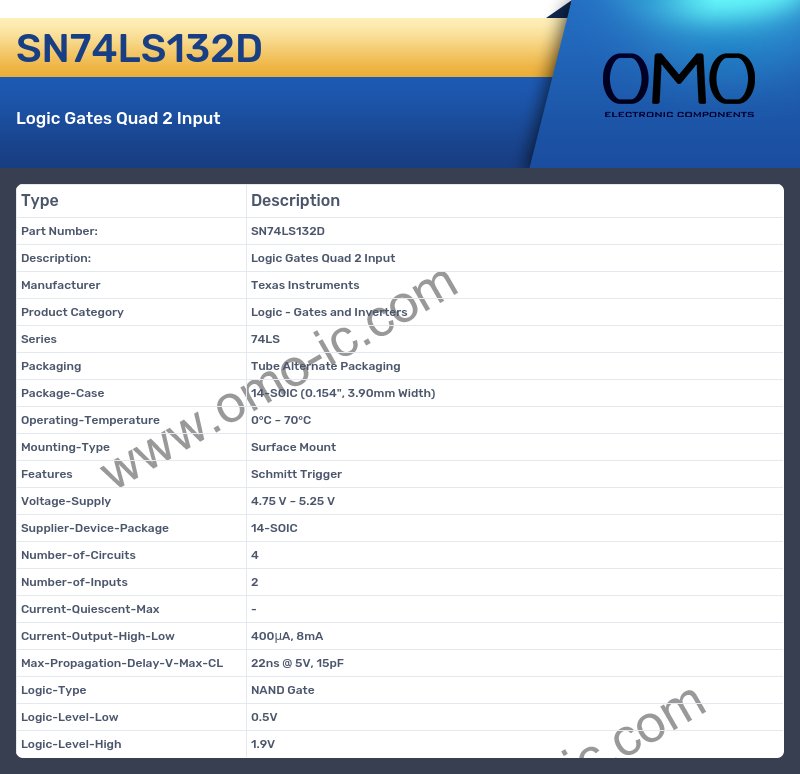

SN74LS132D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LS
• Packaging Tube Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Features Schmitt Trigger
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max -
• Current-Output-High-Low 400μA, 8mA
• Max-Propagation-Delay-V-Max-CL 22ns @ 5V, 15pF
• Logic-Type NAND Gate
• Logic-Level-Low 0.5V
• Logic-Level-High 1.9V
